Product Description
These can be used to transition high frequency waveguide signals to modules with a coaxial interface.
These are used with horn antennas, where the signals needs to be transitioned from a coaxial to waveguide interface for transmission via the horn antenna and vice versa.
When selecting a Waveguide to coaxial adapter, the connector type, gender and geometry for the coaxial connector need to be specified.
And for the waveguide interface, the waveguide size and waveguide flange need to be specified.
Both these depend on the specific requirement and the frequency band being used.

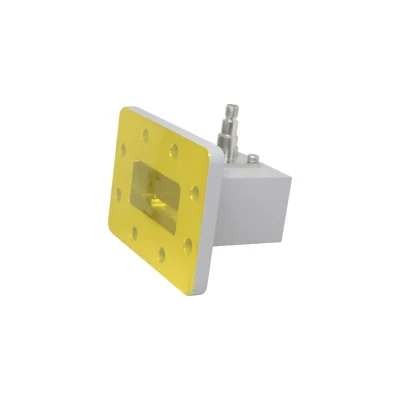

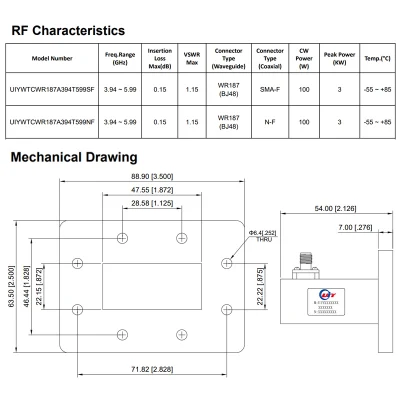

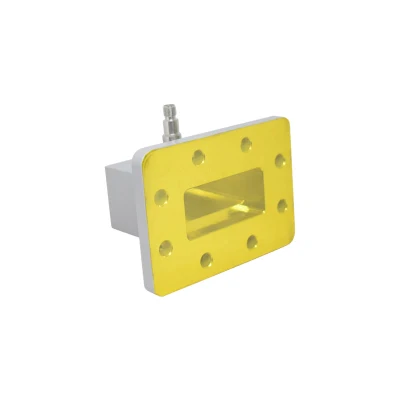

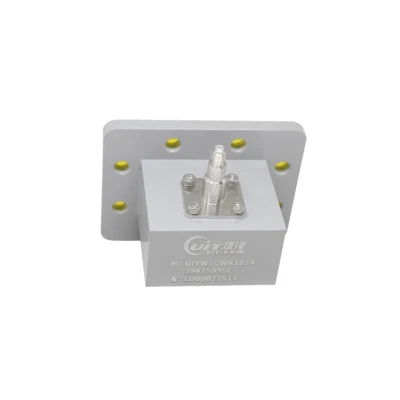

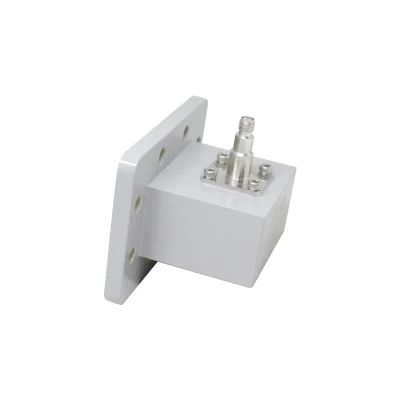

| Description | WR187 C Band 3.94~5.99GHz Microwave Waveguide to Coaxial Adapter |
| Model Number | UIYWTCWR187A394T599 |
| Freq.Range | 3.94 ~ 5.99GHz |
| Insertion Loss Max | 0.15dB |
| VSWR Max | 1.15 |
| Connector Type (Waveguide) | WR187 |
| Connector Type (Coaxial) | SMA-F, N-F |
| CW Power | 100W |
| Peak Power | 3KW |
| Size | 88.9 x 63.5 x 54mm |
| Temperature | -55 ~ +85°C |
| Warranty | one year |
| Certificate | RoHS, REACH, ISO9001, ISO14001 |
Since 2003, UIY Inc. has become a critical supplier and partner to major companies serving the Aerospace, Radar, Defense, Medical, Communications and Specialty Test industries.
UIY's product offerings include:
RF Isolator, RF Circulator
Coaxial Termination, Coaxial Attenuator
RF Filters, Duplexer, Triplexer
Power Divider/Splitter, RF Combiner/Hybrid Coupler
Directional Coupler
TX RX Combiner/Splitter/Multi coupler
Waveguide to Coaxial Adapter, etc.
We offer cost-effective customized solutions in a wide range of RF and Microwave Components and Subsystems.
Advantages:
we offer - ROHS Compliant
we offer - HFSS Simulation
we guarantee - One Year warranty
we guarantee - Fast Delivery
we support - OEM & Contract Manufacturing
Q. Are you a factory or trading company?
A: We are a factory and we have over 20 years of experience focusing on manufacturing .We can give you competitive price and professional service.
Q. Do you have any certificates?
A: Yes, we have ISO, REACH, RoHS certificates.
Q. Would you make custom products?
A: Yes, we offer customized service per your requirements.
Q. What about lead time for sample and production?
A: It's about 2 weeks for new design sample and 1~4 weeks for production. It depends on the order quantity.
Q. What is the Terms of Payment?
A: T/T, Paypal, Alipay
Q. How long is the warranty ?
A: One year
