Basic Info.
Model NO.
KL-K120LA-8CH
Task
Remote Controller
Signal
RF
Material
Mental
Operating Voltage
DC9-12V
Operating Current
7A
Operating Frequency
315/433.92MHz / Customized
Encoding Mode
Custom Learning Code
Weight
140g (Without Shell);260g (with Shell)
Quiescent Current
16mA
Receiving Sensitivity
148dBm
Modulation Type
Fsk+Lora
Coding Type
Coding Type
Transport Package
Carton
Specification
183*83*40mm
Trademark
Kelvin
Origin
Guangdong, China
HS Code
8526920000
Production Capacity
1000000
Product Description

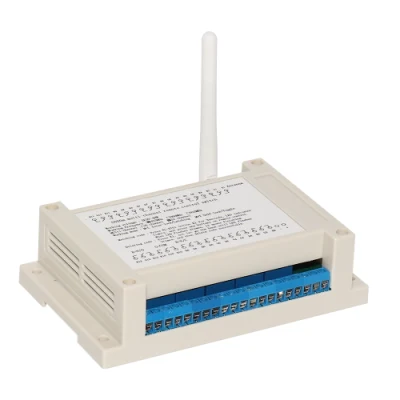

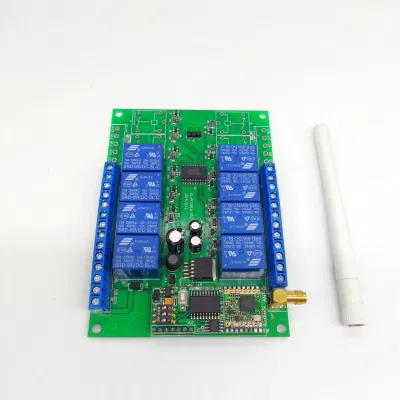

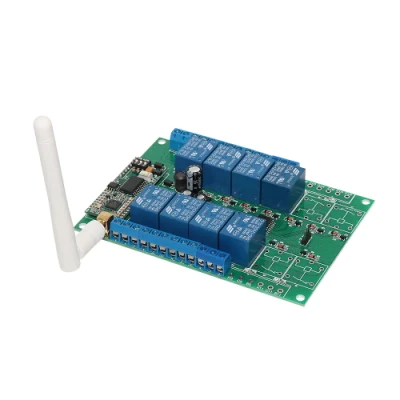

High Power Customized Wireless Remote control Switch KL-K120LA-8CH
Product Description
Use range
1.Water level detection,
2.illigation,
3.Remote meter reading,
4.Remote data collection etc.
| DC9-12V 12 Channel Remote controller | |
| Technical Parameters | |
| Model Name | KL-K120LA-8CH |
| Channel | 8 |
| Operating Voltage | DC9-12V |
| Static current | 16mA |
| Maximum Current | 7A |
| Super far distance: | Match remote KL5000-4 |
| Operating Frequency | 434MHz / Customized |
| Modulation way | FSK+LORA |
| Receiver sensitivity | -146dBm |
| Encoding Type | Custom Learning code |
| Work mode: | Non-lock, interlock, self-lock (M,L,T) (Adjustable) |
| Output Way | ON/OFF Switch |
| Dimension | 183*83*40mm |
| With case | Yes |
| Weight | 140g (without shell);260g (with shell) |
Packaging & Shipping
Packaging:KELVIN standard (we also can do customized package)
Shipping:
1) Express: DHL, FedEx, UPS, TNT, EMS, etc.
2) By air
3) By sea
4) By special line,Depends on buyer's requirement.
5).Delivery Details: within 3-5 days depends on order quantity.
Our Services
Our Service
1.Accept OEM, ODM &silk-screen printing you logo on the shell.
2.Response in 10 hours.
3.Experienced R&D staff.
4.Professional SMT equipments.
5.Accept payment via T/T, Paypal, Western Union, Escrow, and so on.
6.Delivery by DHL,UPS,EMS or by sea as your requirments.
For order
1).Accept OEM.
2).Print logo on the case and pakage
3).Payment Details :30% deposite,70% balance before shipment.Payment accept T/T, Western union, PayPal, optional)
4).Minimum Order:100 PCS (accept trial order)
5).Delivery Details:Within 3-5 days depends on order quantity.
FAQ
Q1: How long if we use in city?
A1: It quite depends on the using conditions. The building and metal effect distance very much. The real distance is subject to actual on the spot.
Q2: Can your remote be copied by duplicators? Do you have any remotes for high security?
A2: Some duplicators can copy our fixed code and learning code remotes. We have high security coding type which can not be copied so far. For high security using, pls contact us for ready solution.
Q3: What's LoRa ? What's difference from LoRaWAN ?
A3: LoRa is a technology which is patented by American company Semtech. Its key feature is very long range with low power consumption. LoRaWAN is a standard of IOT based on LoRa technology.
Q4: Can we have different input voltage like 24V DC ?
A4: Of course. We can make any voltage you want. Q5: Can you print our model number or Logo on PCB or/and enclosure? A5: Of course. And we offer OEM/ODM if you need. We're not only a manufacturer but also have R&D team so that can finish these work as well.
Q5: Can you print our model number or Logo on PCB or/and enclosure?
A5: Of course. And we offer OEM/ODM if you need. We're not only a manufacturer but also have R&D team so that can finish these work as well.
Q6: What modulation is your remote? ASK or FSK ?
A6: We can provide both depends on your need.
Q7: Can we use remote control which made by other manufacturer?
A7: We don't recommend to do so because they might be not compatible or even cause damage.
Q8: Can we use your LoRa remotes or controllers to work with gateway or cloud ?
A8: No, they can't. Our LoRa is peer-to-peer, not for network.Please contact our sales to get more information.
Q9: Is the distance real? Do you measure?
A9: Yes, the distance is up to 6000m LOS(line of sight) for LoRa remotes in real test.
Q10:How do I know what frequency I should select?
A10:We used to make ISM band remote control products. It is license-free in all countries. You just need to tell me which countries the products will be used, then we will select right frequency. Most of our products work at Sub-1GHz, for example 315MHz, 433.92MHz, 447.6MHZ, 868MHz, 915MHz and so on. We also can make them work at 2.4GHz.
