Product Description
RF Circulator is a 3 Port ferromagnetic device used to regulate the signal flow within a circuit.
It transmits an input signal in one direction - A signal that enters port 1 is transmitted to port 2 and isolated from port 3, a signal incident at port 2 is transmitted to port 3 and isolated from port 1, a signal incident at port 3 is transmitted to port 1 and isolated from port 2.
Circulators are typically designed to have minimal loss when transmitting an input signal from one port to the next.

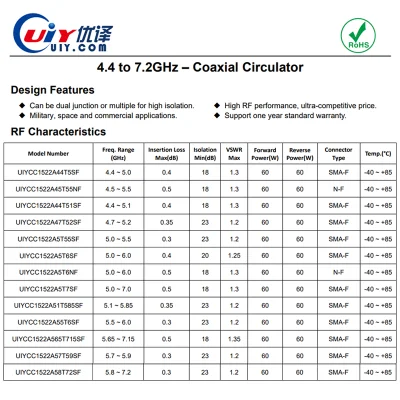

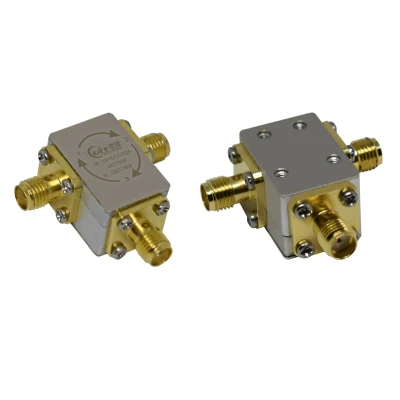

| Description | UIY 5-6GHz 60W RF Microwave Coaxial Circulator SMA-Connector |
| Model Number | UIYCC1522A5T6SF |
| Freq. Range | 5 ~ 6GHz |
| Insertion Loss Max | 0.4dB |
| Isolation Min | 20dB |
| VSWR Max | 1.25 |
| Forward Power | 60W |
| Reverse Power | 60W |
| Connector Type | N, SMA |

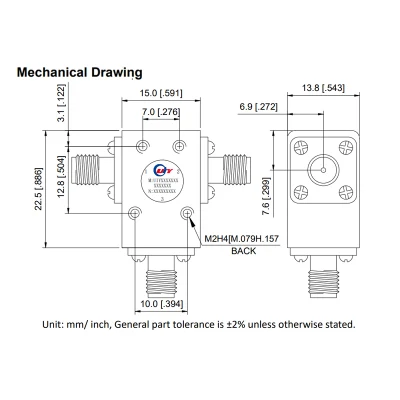

| Dimension LxWxH | 15×22.5×13.8mm |
| Temp.(°C) | -40 ~ +85°C |
| Warranty | one year |
| Certificate | RoHS, REACH, ISO9001, ISO14001 |
Since 2003, UIY Inc. has become a critical supplier and partner to major companies serving the Aerospace, Radar, Defense, Medical, Communications and Specialty Test industries.
UIY's product offerings include:
RF Isolator, RF Circulator
Coaxial Termination, Coaxial Attenuator
RF Filters, Duplexer, Triplexer
Power Divider/Splitter, RF Combiner/Hybrid Coupler
Directional Coupler
TX RX Combiner/Splitter/Multi coupler
Waveguide to Coaxial Adapter, etc.
We offer cost-effective customized solutions in a wide range of RF and Microwave Components and Subsystems.
Advantages:
we offer - ROHS Compliant
we offer - HFSS Simulation
we guarantee - One Year warranty
we guarantee - Fast Delivery
we support - OEM & Contract Manufacturing
Q. Are you a factory or trading company?
A: We are a factory and we have over 20 years of experience focusing on manufacturing .We can give you competitive price and professional service.
Q. Do you have any certificates?
A: Yes, we have ISO, REACH, RoHS certificates.
Q. Would you make custom products?
A: Yes, we offer customized service per your requirements.
Q. What about lead time for sample and production?
A: It's about 2 weeks for new design sample and 1~4 weeks for production. It depends on the order quantity.
Q. What is the Terms of Payment?
A: T/T, Paypal, Alipay
Q. How long is the warranty ?
A: One year
