Basic Info.
Model NO.
UIYCI3538A600T800SF
Freq. Range
600 ~ 800MHz
Insertion Loss Max
0.5dB
Isolation Min
19dB
Vswr Max
1.25
Forward Power
100W
Reverse Power
30W
Connector Type
N-Female
Temperature
-20 ~ +65 centigrade
Certificates
RoHS, REACH, ISO9001, ISO14001
Transport Package
Carton
Specification
35*38*15mm
Trademark
UIY
Origin
Shenzhen, China
HS Code
8517709000
Production Capacity
80000 Pieces / Year
Product Description
Quick Details
• Operating Frequency up to 40GHz .
• Connector Type optional SMA , N , BNC , 2.92mm , 7/16 DIN and 4.3-10 mini DIN with female, jack, male, male to female and plug genders.
• Power up to 500W .
UIY Inc.provide Low insertion loss, high isolation, high power handling on RF Module. Exceptional customer service and technical support are on hand to support our customers.

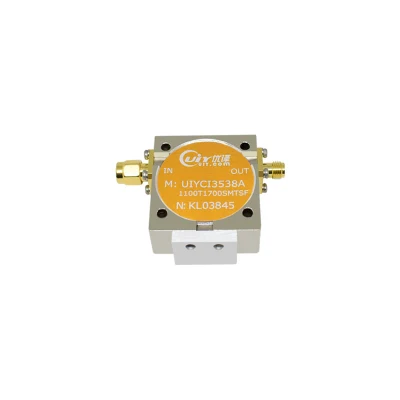

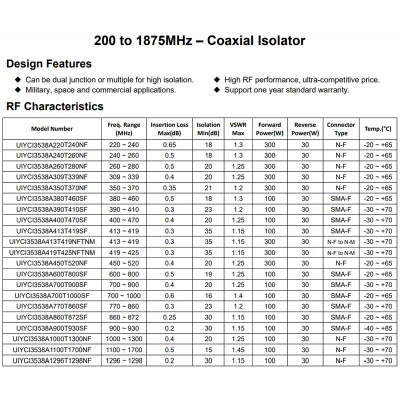

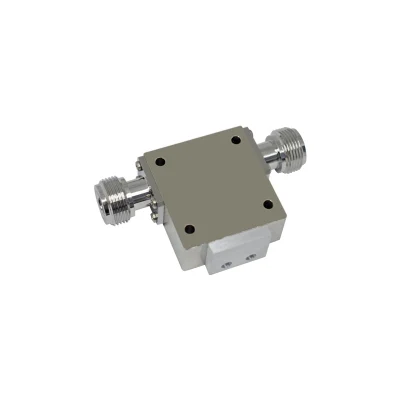

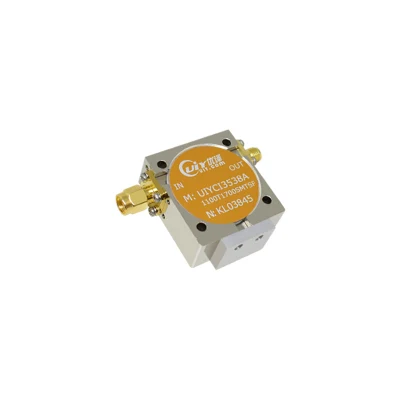

| Model NO. | UIYCI3538A600T800SF |
| Type | RF Coaxial Isolator |
| Brand Name | UIY |
| Freq. Range | 600 ~ 800MHz |
| Insertion Loss Max | 0.5dB |
| Isolation Min | 19dB |
| VSWR Max | 1.25 |
| Power | 100W |
| Connector Type | N-Female |
| Temperature | -20 ~ +65ºC |

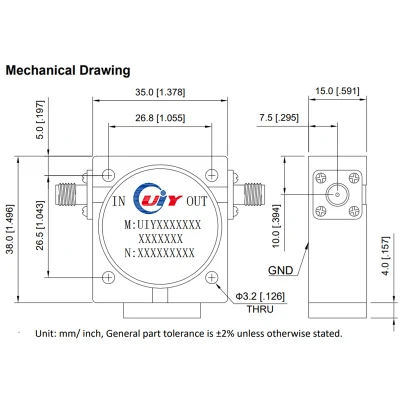

| Dimension | 35*38*15mm |
| Certification | IOS9001,IOS14001,RoHS |
| Warranty | 1 year |
Applications:
Radar System
Telecom Infrastructure
Microwave Radio Systems
Communication Systems
Wireless Radio Systems
R&D labs
Public Address System Radio Transmitter
Biomedical Instrumentation
4G LTE 5G NR Mobile Communciations
4G LTE 5G NR Mobile Communciations
UIY RF Coaxial Isolator Custom Design available:
• Operating Frequency up to 40GHz .
• Connector Type optional SMA , N , BNC , 2.92mm , 7/16 DIN and 4.3-10 mini DIN with female, jack, male, male to female and plug genders.
• Power up to 500W .
UIY Inc.provide Low insertion loss, high isolation, high power handling on RF Module. Exceptional customer service and technical support are on hand to support our customers.
1. Question: when can I get the price?
We usually quote within 24 hours after confirming the detailed requirements. If the situation is similar, we can quote
immediately.
2. Question: what is the minimum order quantity?
Minimum order 1 piece.
3. Question: when will the goods be delivered?
The delivery time is usually about 7 - 14 days after ordering.
4. Question: do you only have this product?
No, we can do other products, just need you to give the specific requirements of products and data or templates.
5. Question: what is the quality and quantity of your products?
We have international common materials and different material products, and you can choose according to your needs.
6. Question: why do you choose us?
We focus on Manufacturer RF Microwave Components & Export for 20 years, so we have the advantage of technology and quality, as well as pretty competitive price.
The products are in full compliance with RoHS, ISO9001 and ISO14001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system. We are committed to providing our customers with high-quality products for a long time.
