- Overview
- Product Description
Basic Info.
Working Pressure
2.5MPa
Product Name
Rotary Paddle Level Switch
Model
Standard,Shaft Protection,Rope,Adjustable Rope,Min
Contact Capacity
Spdt 5A/250VAC
Output
Spdt Relay(2 Sets)
Suitable Gravity
≥0.4G/Cm3
Specification
1kg
Trademark
Bingo
Origin
China
Production Capacity
200000pieces/Month
Product Description
Product Description

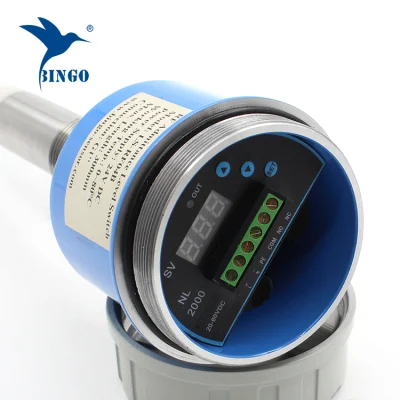

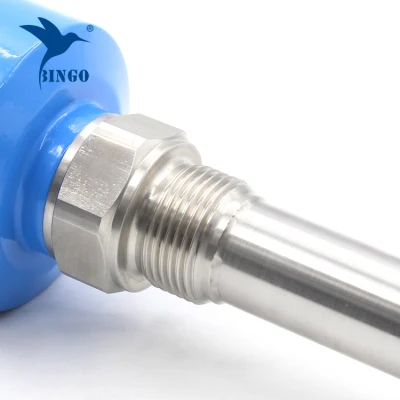

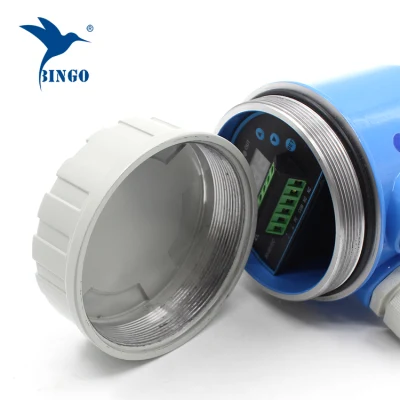

RF Admittance Level Switch 220V AC 110V AC Level Switch
| Product Name | Rotary Paddle Level Switch |
| Working Voltage | AC220V/1A;DC24V/0.5A |
| Contact Capacity | SPDT 5A/250VAC |
| Temp. Range | -20~80ºC |
| Power Supply | 3W |
| Model | Standard,Shaft Protection,Rope,Adjustable Rope,Mini |
| Processing Connection | G1"thread customized |
| Working Voltage | AC220V/1A;DC24V/0.5A |
| Protection Grade | IP65 |
| Vane rotating speed | 1RPM |
| Torque | 10kg-cm |
| Voltage Resistance | 1500VAC*1min |
| Electrical Interface | 1500VAC*1min |
| Installation | Vertical or horizontal installation |
Rotary Paddle Level Switch utilizes micro motor as drive device, transmission shaft contact with clutch. When it doesn't contact
with material, the motor runs normally; When the blade contacts with material, the motor stops running; Detacher device outputs a
contact signal and cuts the power, meanwhile it stops rotary. The pressure to blade is disappeared when the material gradually
fall down and the testing device recovered to the original state by torsion spring. Torsion could be regulated according to
different gravity of material. Rotary paddle level switch can eliminate the normal fault which other common rotary paddle level
switch has. When adding material, it would not go to stop though the motor stops by cutting power.
with material, the motor runs normally; When the blade contacts with material, the motor stops running; Detacher device outputs a
contact signal and cuts the power, meanwhile it stops rotary. The pressure to blade is disappeared when the material gradually
fall down and the testing device recovered to the original state by torsion spring. Torsion could be regulated according to
different gravity of material. Rotary paddle level switch can eliminate the normal fault which other common rotary paddle level
switch has. When adding material, it would not go to stop though the motor stops by cutting power.
This can reduce fraction, operating temperature and extend the lifetime of motor. The switch contains little moving parts, three
sets of drive bearing and sealed, lubricated driving gear assembly. That is why the RD series of Rotary Paddle Level Switch gains
reliable control force in the market. Rotary paddle level switch specially used for detecting material level of warehouse, vessel
and tank. The material level switch can prevent warehouse flooding, tank jam and warehouse empty so as to reduce flooding,
material waste and standby time. Rotary Paddle Level Switch is also suitable for plastic, food, chemical industry, mineral iron,
material and other solid matter.
sets of drive bearing and sealed, lubricated driving gear assembly. That is why the RD series of Rotary Paddle Level Switch gains
reliable control force in the market. Rotary paddle level switch specially used for detecting material level of warehouse, vessel
and tank. The material level switch can prevent warehouse flooding, tank jam and warehouse empty so as to reduce flooding,
material waste and standby time. Rotary Paddle Level Switch is also suitable for plastic, food, chemical industry, mineral iron,
material and other solid matter.
