Basic Info.
Model NO.
RG11
Type
Coaxial Cable
Material Shape
Round Wire
Conductor Type
Solid
Wire Core Material
Bare Copper Wire
Certification
CE, ISO, RoHS, CCC
Model
Coaxial Cable
Brand
Qinshan
Operating Temperature
-15ºC+70ºC
Dielectric Material
Sfe
Type Name
Coaxial Cable
Outdoor Condition
Weather Proof
Voltage Rating
300/300V
Transport Package
Plastic
Specification
19x0.18 mm
Trademark
QINSHAN
Origin
China
HS Code
8544492100
Production Capacity
6000000meters/Year
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 5.00cm
Package Gross Weight
0.500kg
Product Description

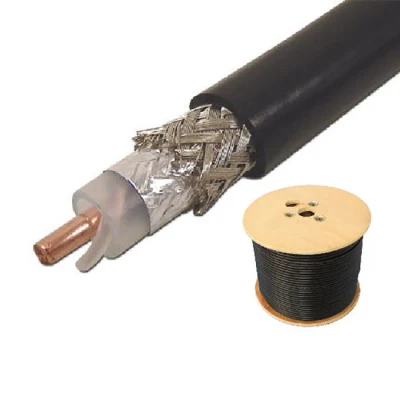

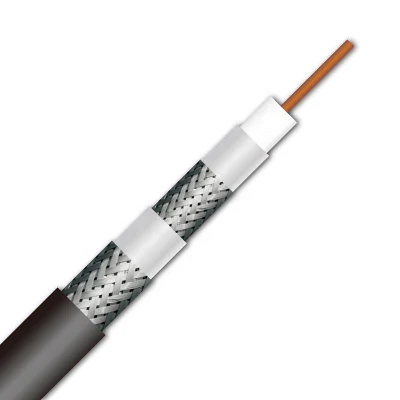

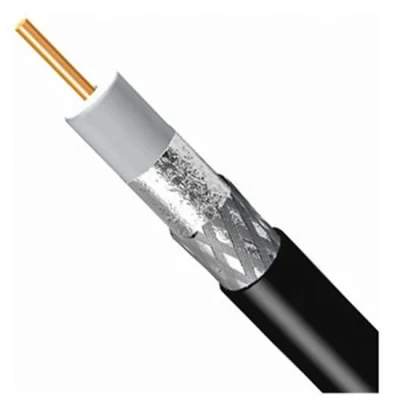

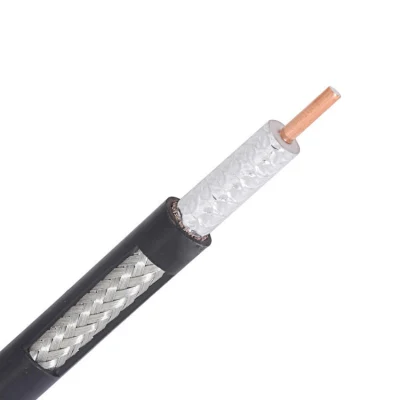

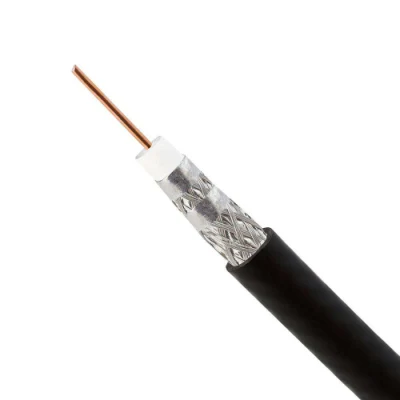

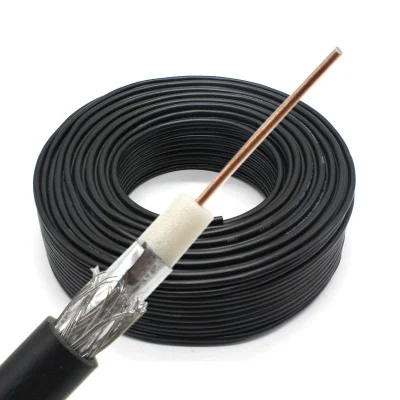

Rg59 Rg9 Coaxial Cable Rg58 RG 11 Rg6 Coaxial With Power Rg 6 Rg59 Coaxial Cable
1.Production Description:
2.Product Parameter:
1.Production Description:
| Conductor | BC/CCS | 0.81mm(20AWG,0.032'') | ||
| Dielectric | FPE | 3.66mm(0.144'') | ||
| 1st Shield | Al Foil | 100%, Overlap>2mm | ||
| 2nd Shield | BC or Al Braiding | 40%-95% | ||
| 3rd Shield | Al Foil | - | 100%, Overlap>2mm | |
| 4th Shield | BC or Al Braiding | - | - | |
| Jacket PVC/PE | Outer Diameter | 6.1mm(0.24'') | 6.1mm(0.24'') | |
| Nominal Thickness | 0.81mm(0.032'') | 0.76mm(0.030'') | ||
| Messenger | Steel | 1.30mm | ||
2.Product Parameter:
| Item.(n) | Structure(mm) | Insulation dia.(mm) | Braid coverage(%) | Approx overall dia.(mm) |
| RG58 | 19/0.18 | 2.95 | - | 4.95 |
| RG59 | 1/0.81 | 3.70 | 60% | 6.10 |
| RG59message | 1/0.81+1/1.30 | 3.70 | 60% | 6.10 |
| RG6 | 1/1.02 | 4.57 | 60% | 7.00 |
| RG6message | 1/1.02+1/1.30 | 4.57 | 60% | 7.00 |
| RG7 | 1/1.29 | 5.72 | 60% | 8.10 |
| RG7message | 1/1.29+1/1.83 | 5.72 | 60% | 8.10 |
| RG11 | 1/1.63 | 7.11 | 60% | 10.1 |
| RG11message | 1/1.63+1/1.83 | 7.11 | 60% | 10.1 |
| RG174 | 7/0.16 | 1.50 | 95% | 2.80 |
| RG179 | 1/0.31 | 1.42 | 95% | 2.54 |
| RG213 | 7/0.75 | 7.25 | - | 10.1 |
| QR500 | 1/2.77 | 11.5 | - | 14.7 |
| QR540 | 1/3.15 | 13.0 | - | 15.4 |
3.Application:
1.Fast and Reliable Connection
2.Durable and Reasonable Design of the Structure Realizes the High Performance
3.Wide Frequency Range
4.Fine Shields Protect the Data Transmission and Reduce the Interference
5. New Design of the Jacket Shows the Sense of Technology and Smartness
6.Jacket Color in Lucidity, Lucidity Blue , Black,White or as per Your Requirement
