Basic Info.
Model NO.
RG59+2c
Material Shape
Round Wire
Range of Application
Local Communication Cable, Coaxial Cable, RF Cable
Certification
ISO9001, CE, RoHS
Brand
OEM/Guangda
Color
Grey, Blue, Red, Black etc
Transport Package
Wooden Reel, Plastic Reel, and Paper Reel
Specification
305M
Trademark
OEM/Guangda
Origin
China
HS Code
8544200000
Production Capacity
1000000pieces/Year
Product Description

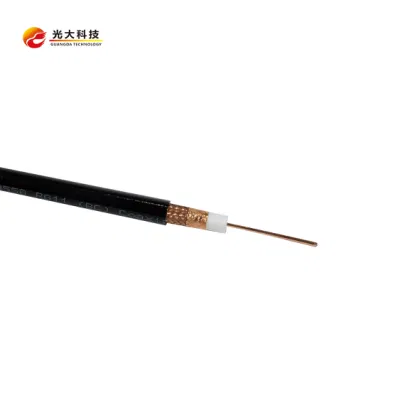

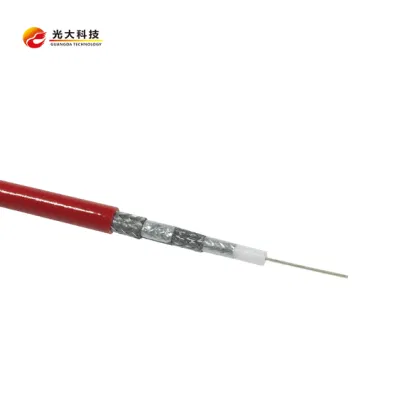

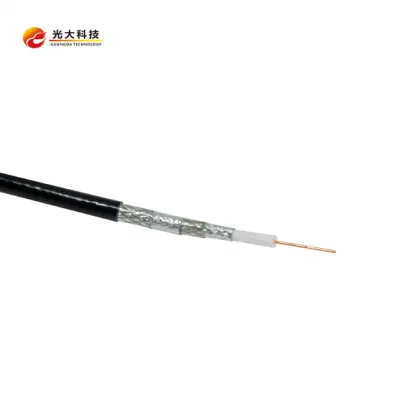

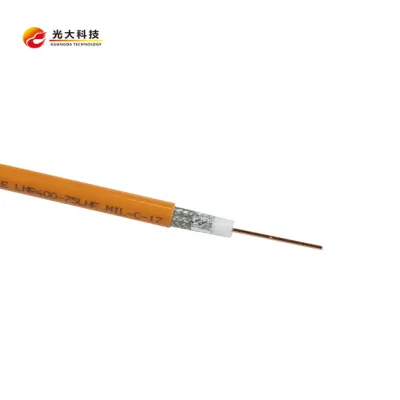

Rg59 2c RG6 Rg58 3c-2V 5c-2V Power Coaxial Cable Wholesale Siamese Power Wire Electric CCTV Camera Video Cable
| Specificaitons | ||||||
| Physical dimensions | ||||||
| component | Standard-shield | Tri-shield | Quad-shield | |||
| inchs | mm | inchs | mm | inchs | mm | |
| Nominal center conductor diameter | 0.032 | 0.81 | 0.032 | 0.81 | 0.032 | 0.81 |
| Nominal diameter over dielectric | 0.144 | 3.66 | 0.144 | 3.66 | 0.14 | 3.66 |
| Nominal diameter over first shield | 0.151 | 3.84 | 0.151 | 3.84 | 0.151 | 3.84 |
| Nominal diameter over jacket | 0.24 | 6.1 | 0.24 | 6.1 | 0.265 | 6.73 |
| Nominal jacket wall thickness | 0.03 | 0.76 | 0.032 | 0.81 | 0.034 | 0.86 |
| Nominal diameter of | 0.051(single) | 1.3 | 0.051(single) | 1.3 | 0.051(single) | 1.3 |
| steel messenger | 0.072(dual) | 1.83 | 0.072(dual) | 1.83 | 0.072(dual) | 1.83 |
| Electrial Characteristics | ||||||
| Nominal impedance | 75ohms | |||||
| Nominal Velocity of propagation | 0.85 | |||||
| Attenuation(20ºC) | ||||||
| Frequency(MHz) | Maximum(dB/100ft) | Maximum(dB/100m) | ||||
| 55 | 2.05 | 6.73 | ||||
| 211 | 3.8 | 12.47 | ||||
| 350 | 4.8 | 15.75 | ||||
| 450 | 5.4 | 17.72 | ||||
| 550 | 5.95 | 19.52 | ||||
| 750 | 6.97 | 22.87 | ||||
| 865 | 7.52 | 24.67 | ||||
| 1000 | 8.12 | 26.64 | ||||
Coaxial Cable Specification is accordingly to Commscope/Belden/TFC Standard,Such as Standard Shield/tri-shield, Quad Shield Cable. With messenger/without messenger
Packing & Shipping

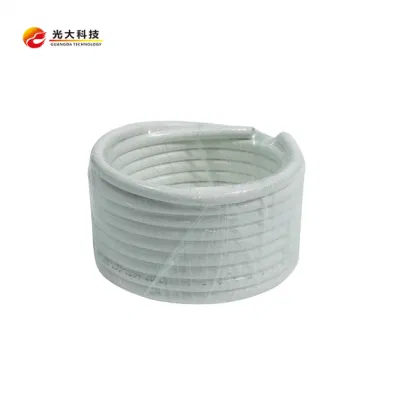

(1) Packing Lengths:3m/5m/10m/20m/50m/100m/200m/305m/500m/1000m etc
(2) Inner Packing:Polybag,Blister,Shrink Wrap,Wooden reel,Plastic reel,or Cardboard drum
(3) Outer Packing:Carton box,Pull out box,Pallet available
(4) Other packing available according to clients' request
(5) Usually we deliver our products by SEA.
Other delivery methods are available upon request from clients.
Our Service:
1) Quick Response --All inquiries will be replied within 24 hours.
2) Professional Quotation --All prices will be quote according to customers' detailed
specifications & requirements.
3) OEM & ODM Service
4) Can print your own brand on the jacket printing with foot or meter marking.
5) Make customized designs for stickers, drums, outer cartons, etc.
6) Stable Quality --All materials and products passed restrict QC procedures,comply with
international standards.
7) Fast Delivery --LCL orders,15days after confirmation; FCL orders, 20 days after
Confirmation in usual.
Good After-sales Service
--We chose the fastest vessel to POD for delivery our goods to clients,
--All Documents will be issued according to clients' instructions, to save troubles from local customs.
--Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.
FAQ:
Q1: What kind of cable do you produce?
A: We specialized in producing Coaxial Cable,Network Cable,Optical Fiber Cable, Fire alarm Cable.
We also provide High polymer material for cable insulation and jacket.
Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.
Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
Q6: Where is your factory located? How can I visit there?
A: Our factory is located inLin'An HangZhou City,ZheJiang Province,China.
1 hour drive from HangZhou XiaoShan International Airport
3 hours drive or 1 and half an hour by high speed rail to railway station from shanghai or Ningbo
