Basic Info.
Model NO.
TPW-PT-727-06-160-NF
Trademark
Topwave
Origin
China
HS Code
8517709000
Production Capacity
500PCS/ Day
Product Description
| Product Description |

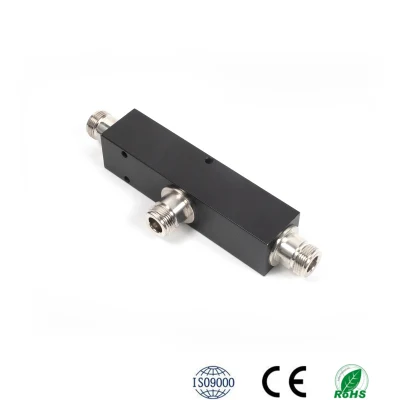

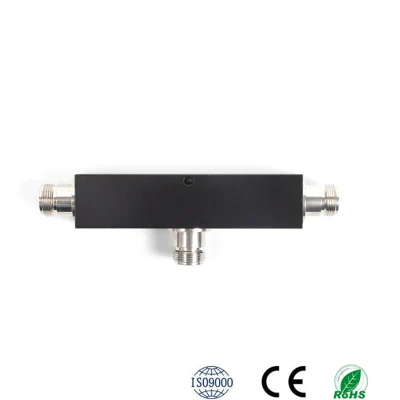

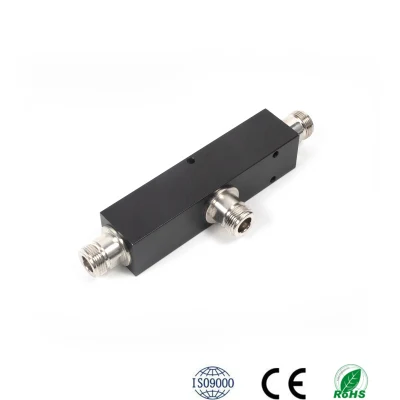

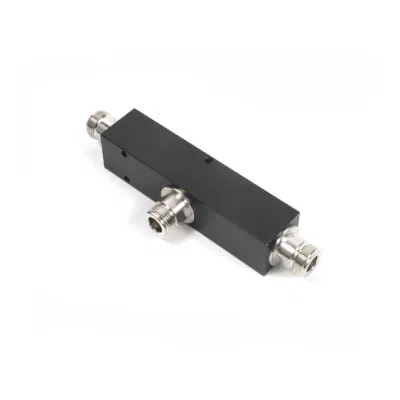

200W Power Tapper(698-2700MHz, N Female, IP65)
A RF Tapper is a device used to split an input signal into two parts. The ratio in which the signals are split is called the Split Ratio - This usually varies from 1:2 to 1:10000 - Depending on the application and power level. In theory, RF signal tappers are very similar to directional coupler. Signal power tappers, signal taps, power tappers, or just taps, are passive RF devices designed to draw a small portion of power from the main transmission line without causing substantial loss.
Topwave Model TPW-PT-XX-727-160-NF(XX means coupling in dB), 698-2700MHz N Female RF power tapper feature with low PIM, low
insertion loss and power handling up to 200 watts. Available with N Female, 4.3-10 or 7/16 DIN connectors with a matching coupling port.
A RF Tapper is a device used to split an input signal into two parts. The ratio in which the signals are split is called the Split Ratio - This usually varies from 1:2 to 1:10000 - Depending on the application and power level. In theory, RF signal tappers are very similar to directional coupler. Signal power tappers, signal taps, power tappers, or just taps, are passive RF devices designed to draw a small portion of power from the main transmission line without causing substantial loss.
Topwave Model TPW-PT-XX-727-160-NF(XX means coupling in dB), 698-2700MHz N Female RF power tapper feature with low PIM, low
insertion loss and power handling up to 200 watts. Available with N Female, 4.3-10 or 7/16 DIN connectors with a matching coupling port.
| Features & Benefits |
·Guaranteed Parameters Compliance
·Wide Frequency Band Covering 698-2700MHz
·Low Insertion Loss
·Low VSWR
·Indoor & Outdoor Using IP65
·Available with Type N, 7/16DIN, 4.3/10 Connectors
| Electrical & Mechanical Specifications |
| Model No. | TPW-PT-727-06-160-NF |
| Tapper Value(dB) | 6 |
| Split Ratio(dB) | 4:1 |
| Coupling Values(dB) | 7.0 |
| Freq(MHz) | 698-960/1700-2700MHz |
| VSWR | ≤1.35 |
| PIM Rating(dBc) | -160dBc@2x43dBm |
| Power Rating(W) | 200W (average Per Port) |
| Impedance | 50 ohm |
| Connector | N-female |
| Color | Black |
| Relative Humidity | 5-95% |
| Operating Tem(ºC) | -35°C to +75°C |
| Weight(kg) | 0.20 |
| Recommended Products |
| About us |
Hefei Topwave Telecom Co.,Ltd, is a worldwide leading provider of comprehensive RF passive equipment and high-performance wireless infrastructure solutions focused on innovation and differentiation at the edge of wireless telecommunication networks.

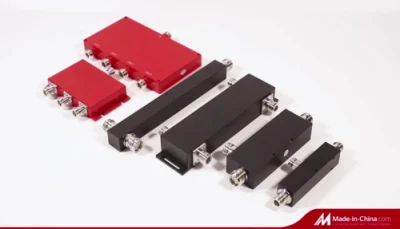

Topwave Telecom established in 2007, located in Hefei National High-tech Zone. With the decades of development, we have our own R&D center and manufacturer center.We are OEM and ODM service provider and network operators to improve performance and reduce operating expenses via comprehensive set of products and solutions. Topwave has more than 10 years experience to export goods to all over the world, the RF passive devices like power splitter, coupler, filter, multiband combiner etc, which widely used for DAS, IBS, BTS and BDA.
Topwave persist to provide excellent products and service for every client as always. Our mission is to make the world connected, make the world small, and make the world smart. Topwave Telecom, your trusted strategic business partner, your RF expert in telecommunication.
| Main Products |
| Application |
| Packing Details |
| Testing Equipment |
| FAQ |
Q: Can I get smaples for validation test?
A: Let's talk, some samples are free but shipping charge should be on your account.
Q: What is your MOQ?
A: We don't have MOQ limit.
Q: What is your payment terms?
A: We accept Western Union, T/T, Paypal and so on.
Q: What is your delievry time?
A: Normally around 2 weeks, TBD for massive quantity or customized products.
