Basic Info.
Model NO.
TPW-8WPS-5096-NF
HS Code
8517709000
Production Capacity
950PCS/ Week
Product Description
| Product Discription |

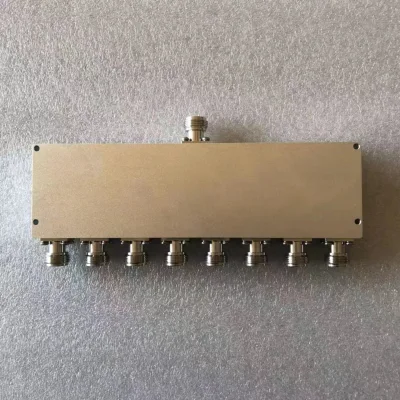

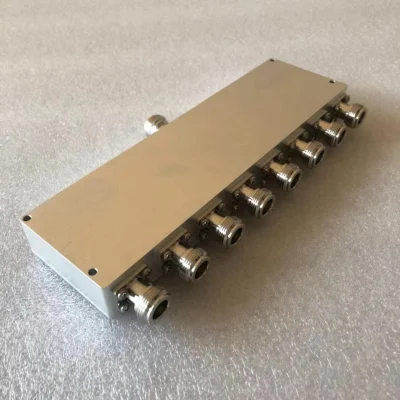

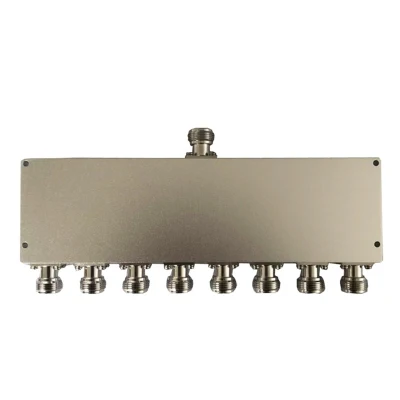

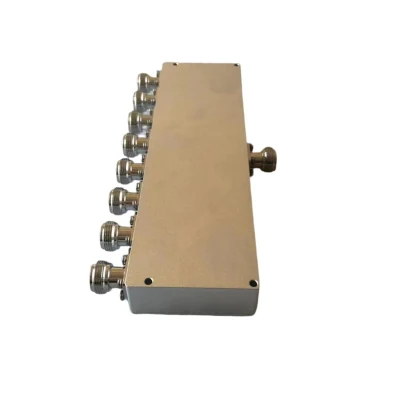

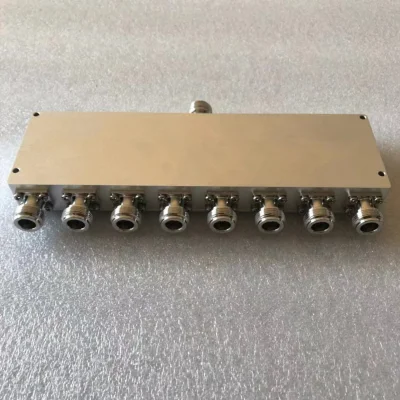

8-way Power Splitter(50-960MHz, IP65, N-female)
8 way splitter is a device that divides the energy of an input signal into eight channels and outputs equal or unequal energy. It can also combine the energy of eight channels signals into one output, which can also be called a combiner.
Topwave launched broadband low frequency 8 way splitter, which helps customers solve many problems on CATV, FM and public safety systems. See above specs, and get in touch with us!!!
8 way splitter is a device that divides the energy of an input signal into eight channels and outputs equal or unequal energy. It can also combine the energy of eight channels signals into one output, which can also be called a combiner.
Topwave launched broadband low frequency 8 way splitter, which helps customers solve many problems on CATV, FM and public safety systems. See above specs, and get in touch with us!!!
| Features & Benefits |
· Wide Frequency Band Covering 50-960MHz
· Low Insertion Loss
· Low VSWR
· High Isolation and Small Size
·Indoor/Outdoor Using IP65
· Available with Type N, 7/16DIN or 4.3/10 Connectors
| Electrical & Mechanical Specifications |
Model No. | TPW-8PS-5096-NF |
Split Chanel | 8-way |
Split Loss(dB) | 9.0 |
Insertion Loss(dB) | ≤5.5dB |
Freq(MHz) | 50-960MHz |
VSWR | ≤1.30 |
Isolation(dB) | ≥16 |
Amplitude Balance | ≤1.8dB |
Phase Balance | 10° |
Power Rating(W) | 0.5W CW as Splitter |
Impedance | 50 ohm |
Connector | N Female |
Surface Finishing | Sandblasting natural color conductive oxide |
Dimensions(mm) | See Mechanical Drawing |
Operating Temperature(ºC) | -40°C to +85°C |
Weight(kg) | 0.50(approx) |
Application | Indoor Using IP60 |
| Recommended Products |
Public Safety Using VHF 136-174MHz 50W RF Factory 136-470MHz Das 2 China Factory 698-2700MHz 50W
2/3/4 Way Power Splitter Divider N Female for in-Building Das Way N Female Wilkinson Power Splitter Low Pim 7/16DIN Male Termination Dummy Load
| About us |
Hefei Topwave Telecom Co.,Ltd, is a worldwide leading provider of comprehensive RF passive equipment and high-performance wireless infrastructure solutions focused on innovation and differentiation at the edge of wireless telecommunication networks.
Topwave Telecom established in 2007, located in Hefei National High-tech Zone. With the decades of development, we have our own R&D center and manufacturer center.We are OEM and ODM service provider and network operators to improve performance and reduce operating expenses via comprehensive set of products and solutions. Topwave has more than 10 years experience to export goods to all over the world, the RF passive devices like power splitter, coupler, filter, multiband combiner etc, which widely used for DAS, IBS, BTS and BDA.
Topwave persist to provide excellent products and service for every client as always. Our mission is to make the world connected, make the world small, and make the world smart. Topwave Telecom, your trusted strategic business partner, your RF expert in telecommunication.
| Main Products |
| Application |
| Packing Details |
| Testing Equipment |
| FAQ |
Q: Can I get smaples for validation test?
A: Let's talk, some samples are free but shipping charge should be on your account.
Q: What is your MOQ?
A: We don't have MOQ limit.
Q: What is your payment terms?
A: We accept Western Union, T/T, Paypal and so on.
Q: What is your delievry time?
A: Normally around 2 weeks, TBD for massive quantity or customized products.
