RF Component Spdt_N-Sp RF Coaxial Electromechanical Switch

Looking for a reliable RF Component Spdt_N-Sp RF Coaxial Electromechanical Switch? Look no further! As a factory, we provide high-quality products at competitive prices. Contact us now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
SPDT_N-SP
Trademark
Jing Maolei
Origin
Shenzhen, Guangdong, China
Production Capacity
2000 Piece Per Mother

Packaging & Delivery

Package Size
30.00cm * 20.00cm * 10.00cm
Package Gross Weight
0.300kg

Product Description

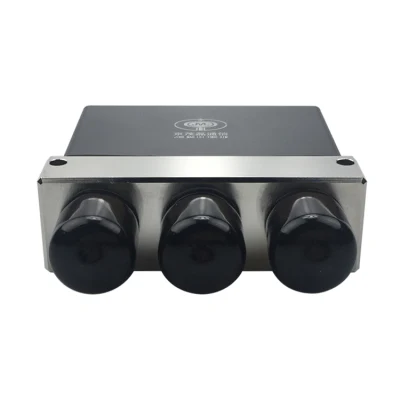

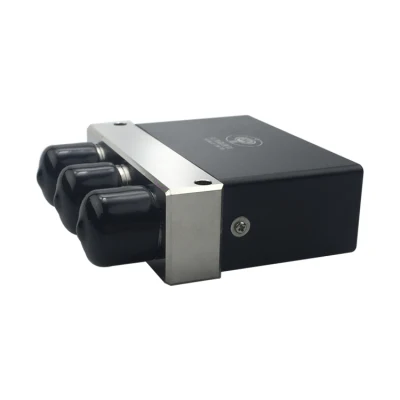

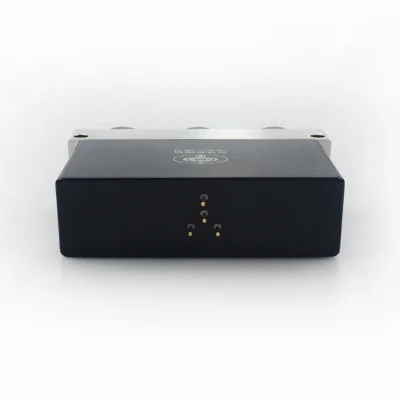

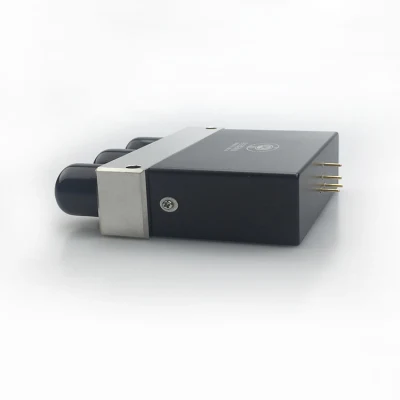

SPDT_N Series

 N type single pole double throw radio frequency electromechanical switch

SPDT RF coaxial electromechanical switches with RF interface type N connector have excellent reliability, high performance.It can switch one signal from the common port to one of the other two output ports, working from DC to 12.4GHz. Widely used in RF measurement, testing, broadband wireless communications, and automated test equipment.



 Model selection

Connectors  Frequency  Type
N: type N Female  3: up to 3GHz  1:Failsafe
6: up to 6GHz  2: Latching
12:up to 12.4GHz

Actuator Voltage  TTL Options  Options
2: 12V  0: without TTL  0: Solder pins
3: 24V  1: with TTL(high level)  1: 9 pin D-sub Connector



    Electrical properties

Connector  Frequency VSWR Insertion loss Isolation Impedance
(GHz)  (max)  (max)dB  (min)dB  (Ω)
DC~1  1.10 0.10 85 50
1~2  1.15 0.15 80
2~3  1.25 0.20 75
3~6  1.35 0.40 70
6~12.4 1.50 0.50 60

   General specification
General specification
TLL input High level 2.5 to 5.5 Volts
Low level 0 to 0.8 Volts
Switching time(maximum) ms  20
Working temperature -400C~+850
Storage temperature  -550C~+850
Life span 3.5 million times


Package and Shipment Details:
1) Neutral Master Carton Package;
2) Customized Package;
RF Component Spdt_N-Sp RF Coaxial Electromechanical Switch


Product Equipment Line:
RF Component Spdt_N-Sp RF Coaxial Electromechanical Switch

Quality Controls:

With more than 10 years experience, we produce A-Grade voltage stabilizer/regulator and can offer OEM & ODM service.
All our products have CE certificate and some have obtained patent.
RF Component Spdt_N-Sp RF Coaxial Electromechanical SwitchRF Component Spdt_N-Sp RF Coaxial Electromechanical Switch
About us

Shenzhen Xin Poming Power Equipment Manufacturing Co., Ltd is established in Guangdong Province of China in 2007, which manufactures and sells voltage regulators, transformers, UPSs, frequency converter, DC power sources and other power products and can provide systemic power solutions for customers with it's complete product list For clients around the world .

RF Component Spdt_N-Sp RF Coaxial Electromechanical Switch


FAQ(Frequent Asked Qestions)

Q: What RF switch configurations are available?

A: Below are our popular configurations for your reference, besides, we accept customization.

Electro-mechanical switches: 1P2T (single-pole, double-throw); 1P3T; 1P4T; 1P6T; 1P8T; 1P12T

Solid-state switches: 1P1T; 1P2T; 1P3T; 1P4T; 1P6T; 1P8T; 1P10T; 1P12T; 1P16T

Q: What control options are available?

A: Depending on model, EM RF switches offer TTL logic-level control, or +12, +15 or +28 V DC control. Solid-state switches use TTL logic levels, and one model has a USB interface.

Q: Are the RF switch attenuators bi-directional?

A: All of XINPOMING's RF switches are bi-directional unless noted differently on the specification sheet.

Q: I need a custom RF switch designed. How much are your typical NREs (non-recurring engineering charges)?

A: XINPOMING does not charge NREs. Please send your custom requirement to us for details communication.

Q: Are your 18GHz electro-mechanical switches available with indicators or as latching?

A: Typical options: latching, self-terminating, indicators, TTL, RoHS and non-RoHS.


You're welcomed to contact us for any questions.
