Basic Info.
Model NO.
N-J1/2R1
VSWR
1.10:1
Medium Pressure
4000V
Brand
Four Star
Impedance
50ohm
Material
Brass and PTFE
Plating
Tri-Alloy and Silver
Frequency Range
DC-11GHz
Name
N Male Clamp Connector
Connector Type
RF N Connector
Weatherproof Rate
IP67
Pim3
-155dbc
Transport Package
200PCS in One Carton
Specification
32cmx24cmx21cm
Origin
China
HS Code
85369090
Production Capacity
500000/Year
Product Description
TYPE N is a kind of low to medium power connectors with screw coupling,Characteristic impedance has two types:50ohm and 75ohm.The characteristic of connector is high reliability,great vibration performance, excellent mechanical and electrical performance etc. They are used in connection with RF coaxial cable in radio instrument, communication equipment, microwave test and ground launch system at vibration and inclement weather circumstance. By using semi-rigid or semi-flex cable,this type will gain smaller VSWR, and the frequency can by up to 11GHZ.

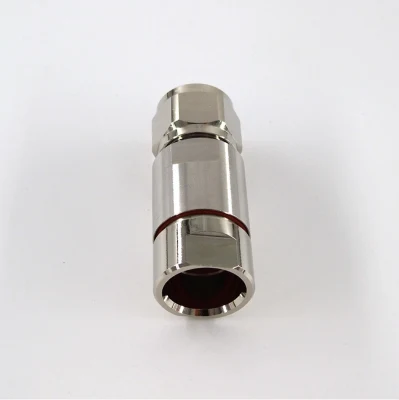

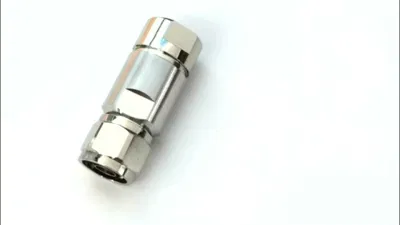

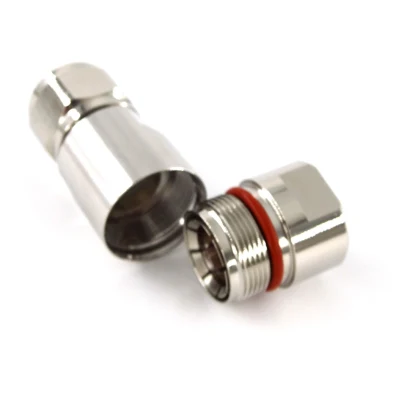

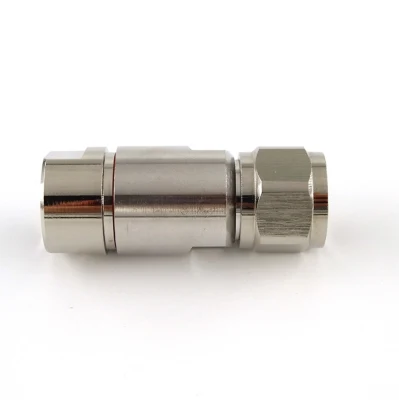

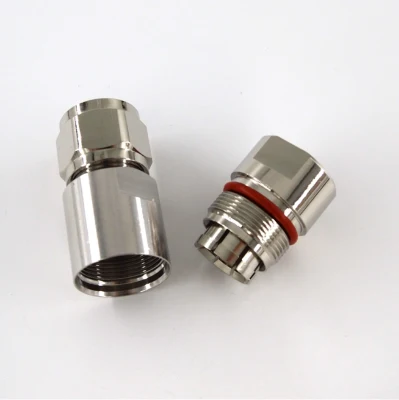

male plug clamp rf coaxial n type connector for 1/2'' foam feeder cable | ||
| Model No. | N-J1/2R1 | |
| Interface | IEC 60169-16;MIL-C-39012;CECC-22210 | |
| Electrical | ||
| Characteristic Impedance | 50ohm | |
| Frequency Range | DC-11GHz | |
| VSWR | ≤1.10@DC-3000MHz | |
| Insertion Losss | ≤0.24dB(6GHz) | |
| 3rd Order IM (PIM3) | ≤ -155dBc@2×20W | |
| Working Vlotage | 1000V RMS,50Hz,at sea level | |
| Dielectric Withstanding Voltage | ≥2500V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥5000MΩ | |
| Contact Resistance | Center Contact ≤1mΩ | Outer Contact ≤0.25 mΩ |
| Mating | - | |
| Mechanical | ||
| Durability | Mating cycles ≥500 | |
| Material and Plating | ||
| Parts Name | Material | Plating |
| Body | Brass | Tri-Metal(CuZnSn) |
| Insulator | PTFE | - |
| Inner Conductor | Phosphor Bronze | Ag |
| Coupling Nut | Brass | Ni |
| Gasket | Silicone Rubber | - |
| Cable Clamp | Brass | Ni |
| Ferule | - | - |
| Environmental | ||
| Operating Temperature | 45 ºC-85 ºC | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
| Suitable Cable Family | Andrew Cable P/N: LDF4-50A and RFS Cable P/N:LCF12-50 | |
Famliy Model
Producetion Process
