Basic Info.
Model NO.
Rg11 75ohm Coaxial Cable
Type
Rg11 75ohm Coaxial Cable
Material Shape
Round Wire
Conductor Type
Solid
Wire Core Material
Bare Copper Wire
Certification
CE, ISO, RoHS
Model
Rg11 75ohm Coaxial Cable
Brand
Hanli
Cable Diameter
6.8mm
Packing
4roll/Box
Conductor
Copper/CCA/CCS
Braids
48/60/80
Transport Package
200m/305m
Specification
1/1.02CU+F. PE+AM+B+PVC
Trademark
hanli
Origin
Zhejiang
HS Code
8544200000
Production Capacity
2000000m/Month
Packaging & Delivery
Package Size
25.00cm * 25.00cm * 25.00cm
Package Gross Weight
20.000kg
Product Description

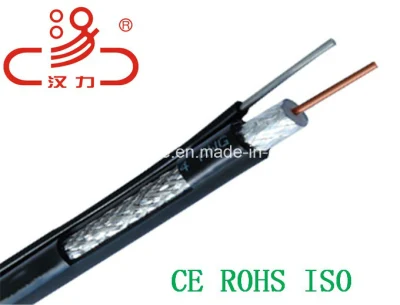

RG11 Coaxial cable
RG11 Coaxial Cable
Specifications:
Center Conductor:1.63 mm BC/CCS
Dielectric: 7.2mm FPE /SPE
First Shield: Bonded AL Foil /Not Bonded AL Foil
Braiding: 96/112/120/128/144/168/192AL/CCS/CCA
Specifications:
Center Conductor:1.63 mm BC/CCS
Dielectric: 7.2mm FPE /SPE
First Shield: Bonded AL Foil /Not Bonded AL Foil
Braiding: 96/112/120/128/144/168/192AL/CCS/CCA
(Braiding O.D.:0.12mm-0.16mm)
Jacket: 10.3mm PVC/PE
Jacket: 10.3mm PVC/PE

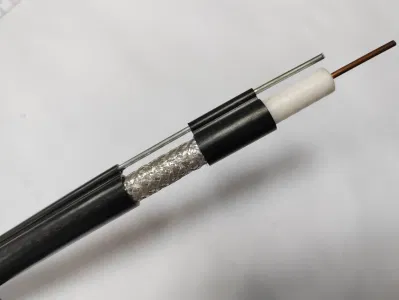

Construction
| Inner conductor | Copper cladsteel(CCS) | 1.63mm |
| Dielectric | Lowdensity PE | Φ7.2±0.2mm |
| Tape shield | Aluminum foil | 100% |
| Outer conductor(shield) | Aluminum wire | 96x0.12mm |
| Shield coverage | 60% | |
| Sheath | PVC or LSZH | Φ10.3±0.18mm |
| Messenger(optional) | Galvanized steel | 1.83mm/2.77mm |
Electrical & Mechanical Characteristics
| Impedance | 75±5Ohm |
| Nominal capacitance | 53pF/m |
| Velocity of propagation | 66% |
| Insulation resistance | >2000Mohm.Km |
| Inner conductor resistance | 13.5Ohm/Km |
| Outer conductor resistance | 24.1Ohm/Km |
| Operating temperature range | -30°C-+70°C |
| Cable weight(approx.) | 116.4-140.4Kg/Km |
Attenuation
| Frequency(MHz) | Attenuation(dB/100m) | Attenuation(dB/100ft) |
| 50 | 3.1 | 0.95 |
| 100 | 4.2 | 1.28 |
| 250 | 6.8 | 2.07 |
| 300 | 7.5 | 2.29 |
| 350 | 7.9 | 2.41 |
| 400 | 8.5 | 2.59 |
| 450 | 9.1 | 2.77 |
| 500 | 9.5 | 2.9 |
| 550 | 10.1 | 3.08 |
| 600 | 10.5 | 3.2 |
| 750 | 12.1 | 3.69 |
| 860 | 13.2 | 4.02 |
| 1000 | 14.3 | 4.36 |
| 1450 | 18.6 | 5.67 |
| 2050 | 23 | 7.01 |
Welcome to visit our factory and get our samples.
Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.Choose us, won't make you disappointed:
1.15 years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
1.Can I have some samples for testing quality?
A1.Yes, you can buy some samples of any our products for testing quality and market.
2.What is delivery time if we place order?
A2. It depends on order quanities. Usually,we can deliver goods within 15 days for small order. For more QTY, Let's confirm when you place official order.
3.Do you accept OEM/ODM?
A3. We support OEM/ODM service.pls don't hesitate to tell us your details.
