Model NO.
JKMC-250A 4P
Output type
Dual
Respond Time
0.05s
Application Range
Power Plant, Hospital
Shell Protection Grade
IP55
Shell Material
Steel Plate
Current
250A
Pole
Abcn
Mechanical Life
8000
Class
PC
Rated Current
100-3200A
Electric Life
3000
Transport Package
Paper /Wooden Pallet
Specification
RoHS package
Trademark
JUNKE
Origin
Zhejiang Yueqing
HS Code
85385000
Production Capacity
15000PCS
Product Description

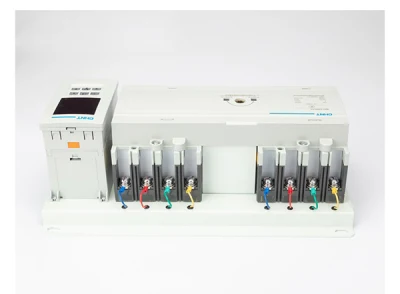

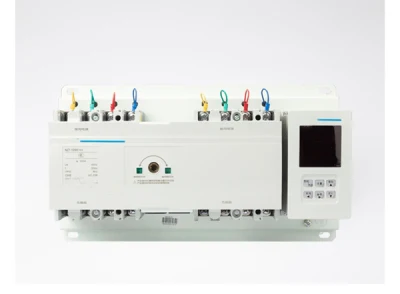

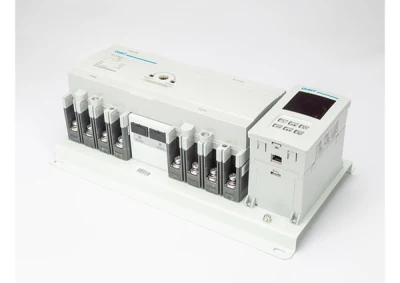

4P 250A Three phase MCCB breaker type automatic transfer switch with Mechanical interlock
What dual power automatic transfer switch?
Dual-power automatic transfer switch is microprocessor, which is used to start and switch between grid power and grid power or between grid power and generator power supply in power grid system. It can supply power continuously. Series of dual power supply, when the common use of sudden failure or power outage, through the dual power automatic transfer switch, automatically put into the standby power supply (under small load standby power supply can also be supplied by generators), so that the equipment can still operate normally. The most common are elevators, fire protection, monitoring, lighting and so on.
When the generator set is used as emergency lighting power supply, the start-up time and power conversion time of the generator should not exceed 15s. Double power automatic switching switch should choose "city power - generator conversion" special type.
Dual-power automatic transfer switch has the functions of short circuit and overload protection, over-voltage, under-voltage, phase-gap automatic conversion and intelligent alarm, automatic conversion parameters can be set freely outside, and intelligent protection of operating motor. When the fire control center gives a control signal to the intelligent controller, two circuit breakers enter the sub-unit. In the gate state, the computer network interface is reserved for the realization of remote control, remote adjustment, remote communication, remote measurement and other four remote functions.
What dual power automatic transfer switch?
Dual-power automatic transfer switch is microprocessor, which is used to start and switch between grid power and grid power or between grid power and generator power supply in power grid system. It can supply power continuously. Series of dual power supply, when the common use of sudden failure or power outage, through the dual power automatic transfer switch, automatically put into the standby power supply (under small load standby power supply can also be supplied by generators), so that the equipment can still operate normally. The most common are elevators, fire protection, monitoring, lighting and so on.
When the generator set is used as emergency lighting power supply, the start-up time and power conversion time of the generator should not exceed 15s. Double power automatic switching switch should choose "city power - generator conversion" special type.
Dual-power automatic transfer switch has the functions of short circuit and overload protection, over-voltage, under-voltage, phase-gap automatic conversion and intelligent alarm, automatic conversion parameters can be set freely outside, and intelligent protection of operating motor. When the fire control center gives a control signal to the intelligent controller, two circuit breakers enter the sub-unit. In the gate state, the computer network interface is reserved for the realization of remote control, remote adjustment, remote communication, remote measurement and other four remote functions.
| Rated Current(Ith) | 80A | 100A | 125A | 160A | 250A | 400A | 630A | 800A | 1000A | 1250A | 1600A | ||
| Rated insulation voltage(Ui) | 750V | 1000V | |||||||||||
| Rated concussion withstand voltage(Uimp) | 8KV | 12KV | |||||||||||
| Rated working voltage(Ue) | AC440V | ||||||||||||
| Rated working current(Ie) | AC-31A | 80 | 100 | 125 | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 | 1600 | |
| AC-35A | 80 | 100 | 125 | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 | 1600 | ||
| AC-33A | 80 | 100 | 125 | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 | 1600 | ||
| Rated connection capacity | 10le | ||||||||||||
| Rated breaking capacity | 8le | ||||||||||||
| Rated limited short-circuit current(ls) | 50kA | 70kA | 100kA | 120kA | |||||||||
| Rated short-time withstand current(ls) | 7kA | 9kA | 13kA | 26kA | 50kA | ||||||||
| Transfer I-II or II-I | 0.45s | 0.6s | 1.2s | ||||||||||
| Control Power voltage | DC24V. 48V. 110V. AC220V | ||||||||||||
| Electrical consumption | |||||||||||||
| Rated frequency | Start | 300W | 325W | 355W | 400W | 440W | |||||||
| Normal | 55W | 62W | 74W | 90W | 98W | ||||||||
| Weight(kg) 4 pole | 7.2 | 7.5 | 7.5 | 8.8 | 9.0 | 16.5 | 17 | 32 | 36 | 40 | 43 | ||
