Basic Info.
Model NO.
SC
Specification
FTTH FTTB FTTX Network
Trademark
SMD
Origin
Shenzhen China
HS Code
8544700000
Production Capacity
100000/Month
Product Description

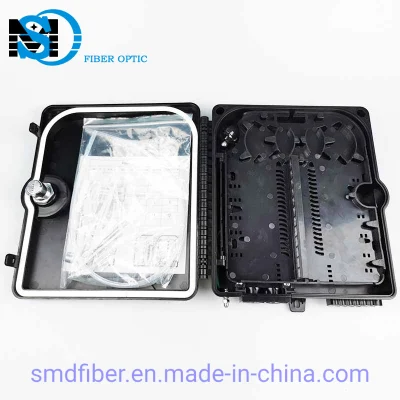

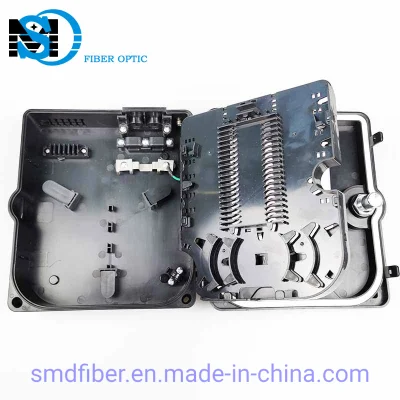

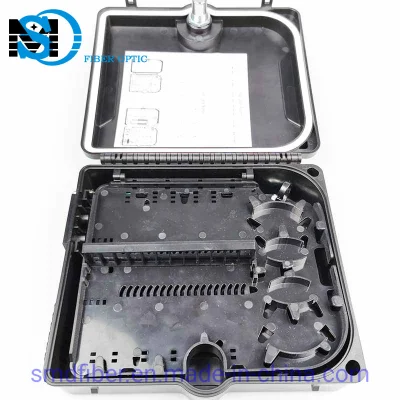

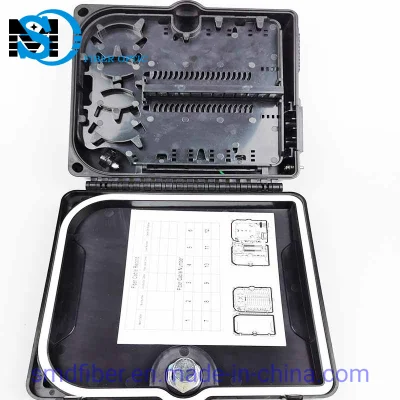

Optical Termination Box 12 Ports for Indoor and Outdoor Application
Features
As per the requirement,open the hole-at the bottom of the box,then install the seal rings As per the cable size to cut seal rings, cable through the it
Adjust the length of cable, keep extra cable around 0.5m;
Clean the cable, cut the cable protector around 0.4m,keep armoured part around 30mm,keep the fiber around 60mm;
When strip the cable ,use insulating tape or heat shrink protector;
Put the fiber through the hole,fix it with clamp, then tighten the screws.
Trunk optical cable splice and route with pigtail
Features
Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity.
Suitable for the fusion splice or machanical splice.
Embedded type surface,easy for installation and removal
2port cable entrance for patch cable.
Applications
CATV
Network Equipment
Fiber Distribution Frame
As per the requirement,open the hole-at the bottom of the box,then install the seal rings As per the cable size to cut seal rings, cable through the it
Adjust the length of cable, keep extra cable around 0.5m;
Clean the cable, cut the cable protector around 0.4m,keep armoured part around 30mm,keep the fiber around 60mm;
When strip the cable ,use insulating tape or heat shrink protector;
Put the fiber through the hole,fix it with clamp, then tighten the screws.
Trunk optical cable splice and route with pigtail
Strip the fiber and pigtail, 1.3m to 1.5m, then put the tube protector; Open the tray, splice the fiber;
Put the finished fiber into the tray ; Fixed the fiber and pigtail; Remark the fiber and record it
