Basic Info.

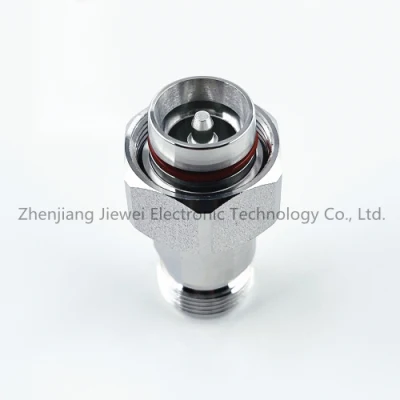

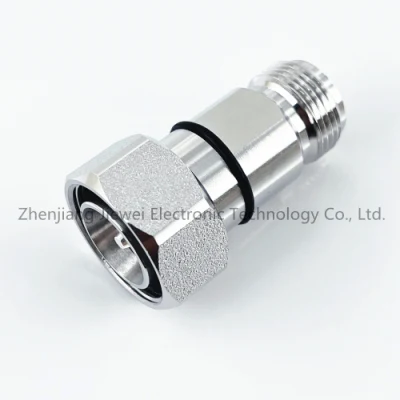

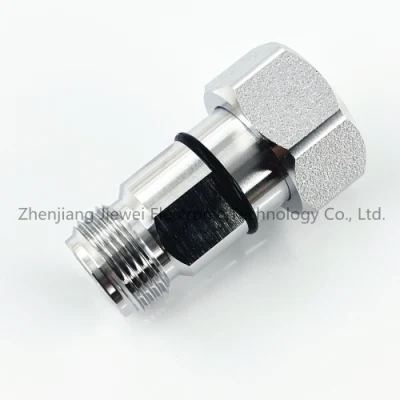

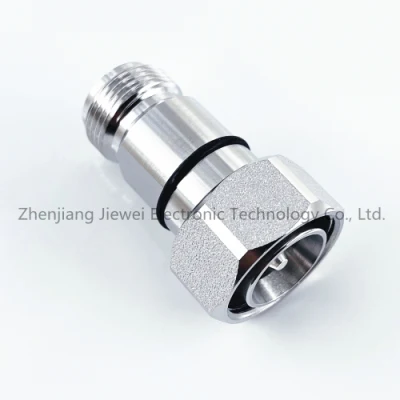

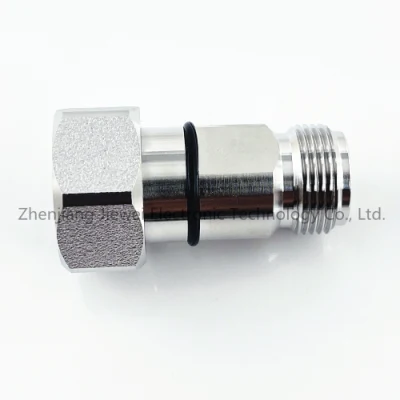

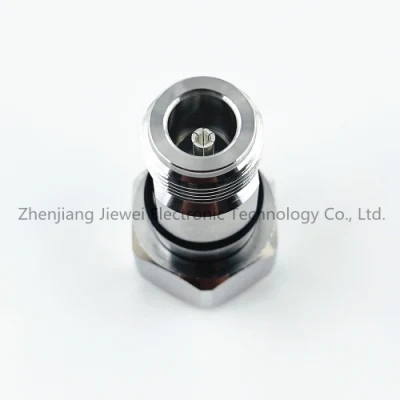

Product Description
| Interface | |||
| According to | IEC 60169-54 | ||
| Electrical | |||
| Characteristic Impedance | 50 ohm | ||
| Frequency Range | DC-3GHz | ||
| VSWR | VSWR≤1.10(3.0G) | ||
| Dielectric Withstanding Voltage | ≥5000V RMS,50hz,at sea level | ||
| Contact Resistance | Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ | ||
| Dielectric Resistance | ≥10000MΩ | ||
| Mechanical | |||
| Durability | Mating cycles ≥500cycles | ||
| Material and plating | |||
| Material | plating | ||
| Body | Brass | Tri-Alloy | |
| Insulator | PTFE | - | |
| Center conductor | Tin Phosphor bronze | Ag | |
| Gasket | SIlicone rubber | - | |
| Other | Brass | Ni | |
| Environmental | |||
| Temperature Range | -40ºC~+85ºC | ||
| Rosh-compliance | Full ROHS compliance | ||
Zhenjiang Jiewei Electronic Technology Co., Ltd. Was founded in 1995, is a high-tech enterprise with independent legal personality.
The company is located in Zhenjiang Industrial Park, Jiangsu Province. It has more than 200 employees, covering an area of 40, 000 square meters and a production area of 20, 000 square meters. It is a company that designs and manufactures radio frequency coaxial connectors, coaxial cable components, passive components (power splitters, couplers) and communication accessories (arresters, loads, attenuators, feeder cards, earthing lines, etc. ) for wireless mobile communication base stations. Our products are widely used in telecommunication equipment manufacturers, telecommunication operators, antenna manufacturers and broadcasting equipment manufacturers, and are sold to Asian, North American, Middle East, Australia, South America and European markets.
Over the years, the company adheres to the management concept of "honesty", insisting on providing all customers with the best communication products with excellent quality and strong technical advantages, reasonable price and high-quality after-sales tracking service.
