Basic Info.
Model NO.
SSU5266A
Number of Switches
1/2/3/4
Switch Type
Spdt / Sp6t
RF Connector
SMA Female / 2.4mm Female
Size
153*62.4*137.5mm
Transport Package
Anti-Collision and Moisture-Proof
Specification
Contact Us
Trademark
Siglent
Origin
China
Production Capacity
5000/Quarter
Packaging & Delivery
Package Size
50.00cm * 30.00cm * 20.00cm
Package Gross Weight
10.000kg
Product Description
SSU5000A Mechanical Switch
Product Overview

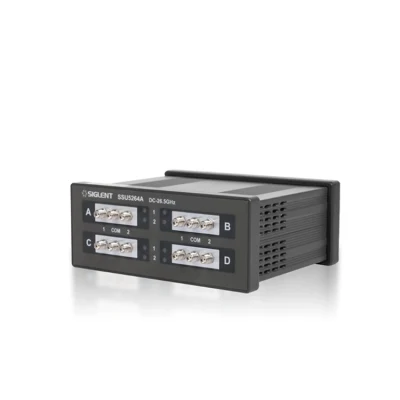

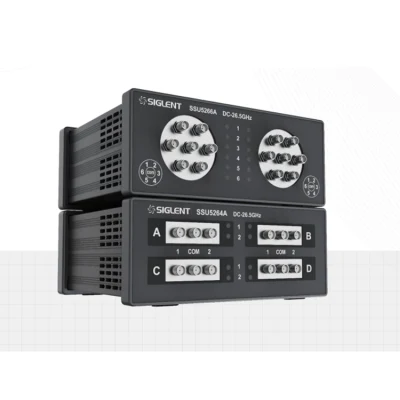

In order to meet the multi-port test requirements of microwave and millimeter wave systems, SIGLENT has introduced SSU5000A series mechanical switches with frequency range up to 50 GHz. The SSU5000A has compact design, excellent RF characteristics, low insertion loss, great impedance matching and extraordinary short switching time. It contains 1-4 independent single-pole double-throw mechanical switches with SMA or 2.4 mm connectors, or single-pole six-throw mechanical switches.
Key facts
- Maximum frequency: 18 GHz/ 26.5 GHz/ 50 GHz

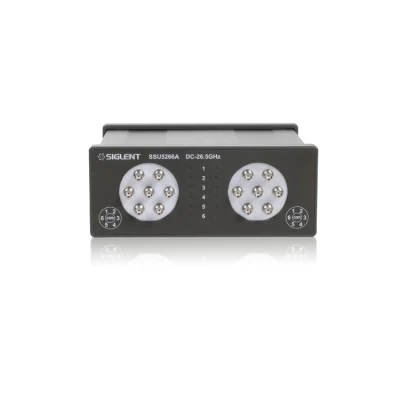

- 1 to 4 SPDT switches or 1 to 2 SP6T switch configurations

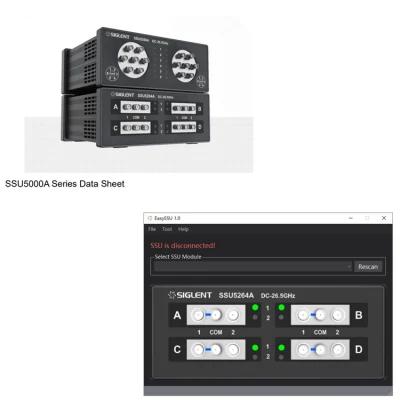

- SCPI Controllable via VISA and EasySSU software
- USB Connectivity
- Size: W×H×D=153×62.4×137.5mm
- RF connector: SMA female or 2.4mm female
Model parameters
| Model | Frequency Range | Number of Switches | Switch Type | RF Connector |
| SSU5181A | DC - 18 GHz | 1 | SPDT | SMA female |
| SSU5182A | DC - 18 GHz | 2 | SPDT | SMA female |
| SSU5183A | DC - 18 GHz | 3 | SPDT | SMA female |
| SSU5184A | DC - 18 GHz | 4 | SPDT | SMA female |
| SSU5261A | DC - 26.5 GHz | 1 | SPDT | SMA female |
| SSU5262A | DC - 26.5 GHz | 2 | SPDT | SMA female |
| SSU5263A | DC - 26.5 GHz | 3 | SPDT | SMA female |
| SSU5264A | DC - 26.5 GHz | 4 | SPDT | SMA female |
| SSU5265A | DC - 26.5 GHz | 1 | SP6T | SMA female |
| SSU5266A | DC - 26.5 GHz | 2 | SP6T | SMA female |
| SSU5501A | DC - 50 GHz | 1 | SPDT | 2.4mm female |
| SSU5502A | DC - 50 GHz | 2 | SPDT | 2.4mm female |
| SSU5503A | DC - 50 GHz | 333 | SPDT | 2.4mm female |
| SSU5504A | DC - 50 GHz | 4 | SPDT | 2.4mm female |
- Maximum frequency: 18 GHz/ 26.5 GHz/ 50 GHz
- 1 to 4 SPDT switches or 1 to 2 SP6T switch configurations
- SCPI Controllable via VISA and EasySSU software
- USB Connectivity
- Size: W×H×D=153×62.4×137.5mm
- RF connector: SMA female or 2.4mm female
- SPDT is a Single Pole, Dual Throw switch where 1 common terminal is switched to 1 of the 2 numbered terminals.
- SP6T is a Single Pole, 6 Throw switch where 1 common terminal is switched to 1 of the 6 numbered terminals.
