Basic Info.
Model NO.
TPW-3WPS-727-SF
HS Code
8517709000
Production Capacity
500PCS/ Day
Packaging & Delivery
Package Size
8.00cm * 5.00cm * 3.00cm
Package Gross Weight
0.400kg
Product Description

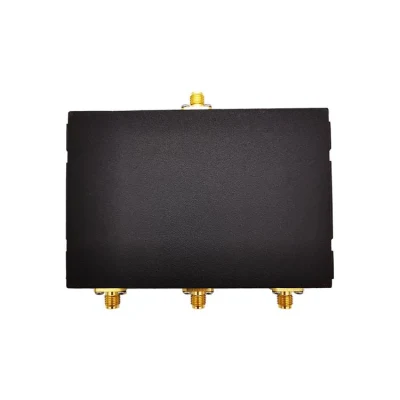

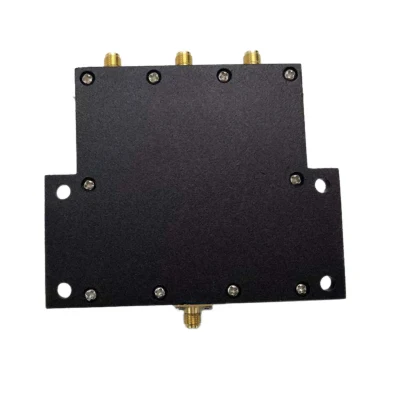

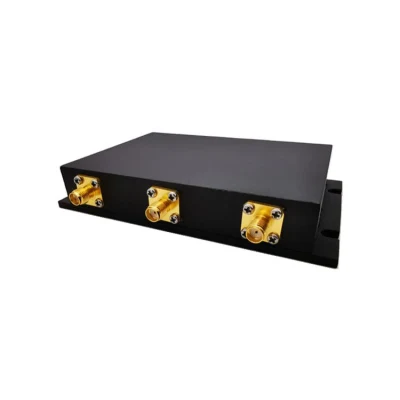

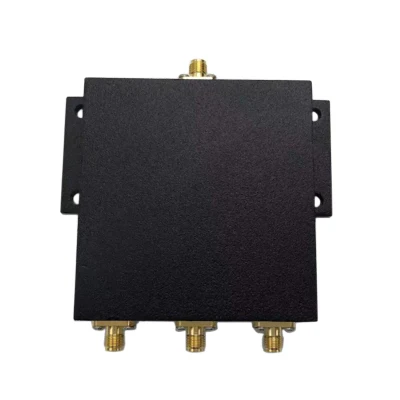

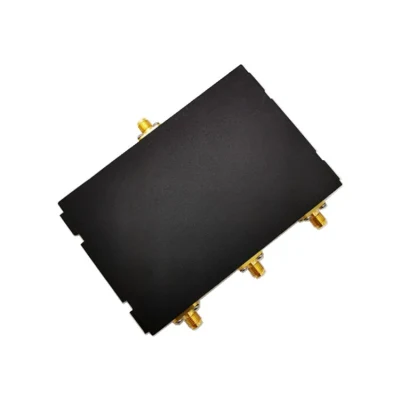

Wilkinson Power Splitter(50W 3 Way, 698-2700MHz, IP67, SMA Female)
The wilkinson power splitter also called Wilkinson power divider, uses quarter wave transformers to split the input signal to provide two output signals that are in phase with each other. Wilkinson power divider, splitter / combiner circuit. The resistor between the two output ports enables the two outputs to matched while also providing isolation.
Topwave Telecom Model TPW-2WPS-727-SF, TPW-3WPS-727-SF, TPW-4WPS-727-SF refer to 698-2700MHz 2/3/4 way power splitter with SMA type connection. Compared with cavity splitter, whose high isolation and small dimensions are highly accepted in cabinet system and integrated system.
| Features & Benefits |
·Guaranteed Parameters Compliance
·Wideband Frequency Band Coverage
·Low Insertion Loss
·Low VSWR
·Indoor & Outdoor Using IP65
·Available with Type N, 7/16DIN, 4.3/10 Connectors
| Electrical & Mechanical Specifications |
| Model No. | TPW-3WPS-727-SF |
| Split Chanel | 3-way |
| Split Loss(dB) | 4.8 |
| Insertion Loss(dB) | ≤0.7 |
| Isolation(dB) | ≥19 |
| Freq(MHz) | 698-2700MHz |
| VSWR | ≤1.30 |
| Power Rating(W) | 50W (average Per Port) |
| Impedance | 50 ohm |
| Connector | SMA Female |
| Color | Black |
| Operating Temperature(ºC) | -30~+65 |
| Weight(kg) | 0.27 |
