Basic Info.
Model NO.
MAH
Electricity Type
DC
Number of Pole
1
Size
Miniature
Load
14VDC 40A; 28VDC 20A
Coil Voltage
12VDC
Protect Feature
Sealed
Terminal Form
QC
Jd1912 Relay
Jd1912 Relay
Color
Black
Name
Automotive Relay
Contact Arrangement
1c Change-Over Type
Max.Switching Voltage
80VDC
Transport Package
500PCS/Carton
Trademark
MEISHUO
Origin
Zhejiang, China
HS Code
8536411000
Product Description

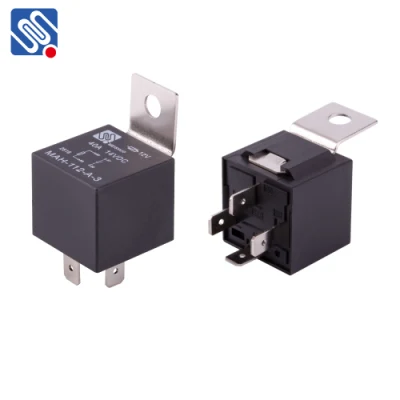

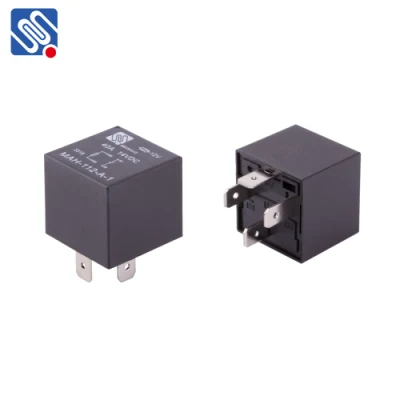

MAH Electric 24VDC Jd1915 Jd1914 DC Spdt 5 Pin Mini Power 12 Volt 40 AMP 30A 4pin Auto Car Relay
Product Description
Product Description
Features:
| Structure | Dust proofed or sealed | Terminal Form | QC |
| Coil Voltage | 12VDC 24VDC | Unit Weight | 35g |
| Contact form | 1A 1B 1C 2A | Ambinent Temperature | -40~+125 |
Detailed Images
Information Sheet
Wiring Diagram
Outline Dimensions
* 40A & 60A switching capability
* 4 kinds of contact arrangement available
* Various mounting terminations available
* Dust protected type and sealed type available
* Outline dimensions: 27.8*27.8*25.1mm
Product packaging
* MAH Packing:
* 50 pcs/plastic box
* 10 plastic boxes/master box
* 500 pcs /master box
* shockproof packing : packaging filler corrugated board
* Meas: 45*40*22cm
* G.W:18KGS 18.5KGS 21KGS
* N.W.:17KGS 17.5KGS 17.5KGS
