Basic Info.
Model NO.
KW3A-16Z2-A100
Size
Normal Size
Environment
≧250℃﹤400℃
Breaking Capacity
High-Current
Breaking Form
Duplex Type
Application
Home Appliances
Brand
Dongnan
Certification
ISO9001, CE
Mechanical Life
2,000,000 Cycles
Electrical Life
50,000 Cycles
Weight
Approx.6.2g(No Lever)
Safety Approvals
UL,cUL,VDE,ENEC,Semko,Demko
Transport Package
Carton
Specification
45*45*45
Trademark
DONGNAN
Origin
China Yueqin
HS Code
8536500000
Production Capacity
2000000
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
1.000kg

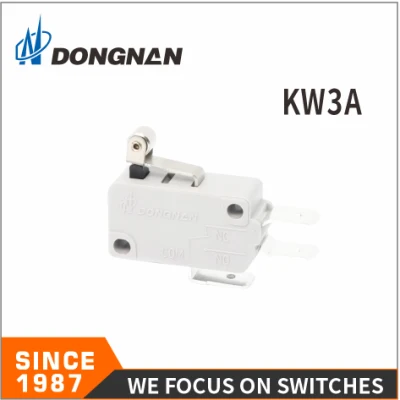

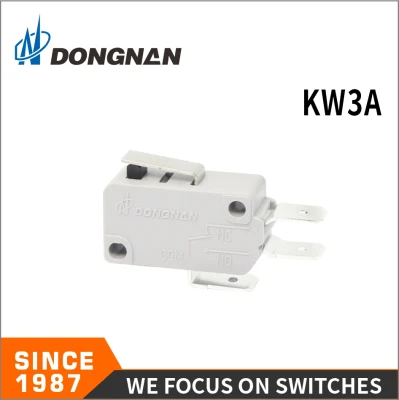

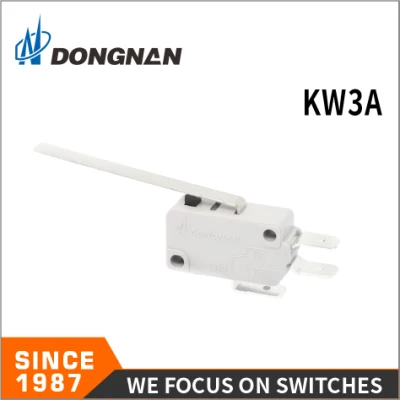

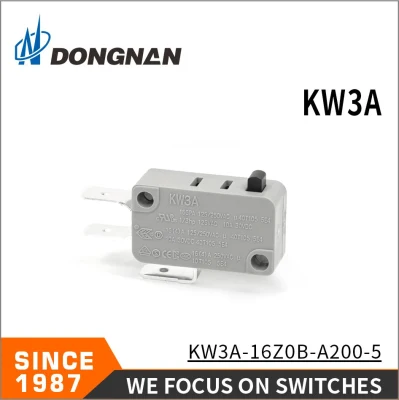

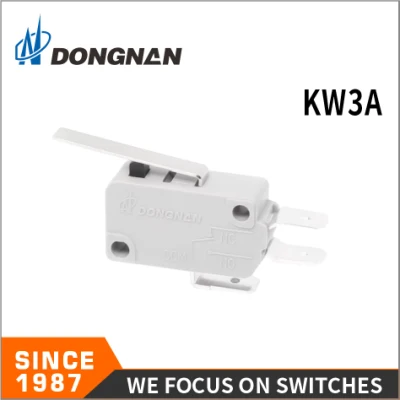

Product Description
1.Safe, reliable basic switch.
2.Nice appearance,tight contiguration.Characteristic:small contact clearance,quick action, high sensitivity and small operating travel.
3.Wide range of operating force
4.Long life, high reliability.
5.A variety of contact terminals.
6.A varnety of temperature degree.
7.A variety of levers.
8.Adopt thermosetting plastic or thermoplastic.
9.Widely used in home appliance, electronic equipment,automatic machine, communication equipment,car electron,apparatus and instument,electric motion tool etc.
10.Direct current large gap switch can be provided
| Item | Value |
| Operating speed | 0.1mm-1m/s(Related with actuator forms) |
| Operating Frequency | Mechanical 60 cycle/min; Electrical 25 cycles/min |
| Insulation resistance | ≥ 100MΩ(500VDC) |
| Contact resistance | OF>0.75N:≤30mΩ OF≤0.75N:≤100mΩ (initial value) |
| (Test voltage) Between terminals of the same polarity | AC1000V,50/60Hz,1min |
| (Test voltage) Between current-carrying metal parts and ground (case),and between each terminal and non-cueeent-carrying metal parts. | AC3750V,50/60Hz,1min |
| Vibration resistance | 10-55Hz,1.5mm Double amplitude |
| Shock resistance | Destruction:OF>0.5N:1000m/s2(approx.100G)max OF≤0.5N:400m/s2(approx.40G)max Malfunction:OF>0.5N:200m/s2(approx.20G)max OF≤0.5N:100m/s2(approx.10G)max |
| Life | Mechanical≥2,000,000 cycles Electrical≥50,000 cycles |
| Weight | Approx.6.2g(No lever) |
| Safety approvals | UL,CUL,VDE,ENEC,SEMKO,DEMKO,NEMKO,FLMKO,CE,EK , CQC |
DONGNAN ELECTRONICS CO.,LTD established in 1987, with more than 30 years manufacturing experience in making switches. Mainly produce micro switches, water proof micro switches, power switches, gate control switches, rotary switches, voltage-selected switches etc. We are a national-level new and high-tech switch manufacturing enterprise that has R&D, producing, marketing and after-sales service, and our switches are widely used in whole China and oversea countries.
At present, we set up many offices and warehouses in the production area which home appliances are concentrated, to build the fastest technical service and logistics distribution system.
Q1.How do you charge the sample shipping cost?
Normally samples be free, shipping cost on your side.
Q2.What is your monthly output?
Fifty million pcs.
Q3.Do you have patent for micro switch?
Yes, we have patent for micro switch.
Q4.How many employees does your factory have?
We have 790 employees.
Q5.Can you provide a good price and good quality for your micro switch?
Our switch quality is guaranteed, the price is the factory price, no middlemen.
