Basic Info.
Certification
ISO9001, CE, RoHS
Brand
Meitong
Material
Copper
Wire Diameter
0.25mm
Conductor Model
Stranded
Conductivity
From 15% to 70%
Supply Ability
500000meters Per Month
Transport Package

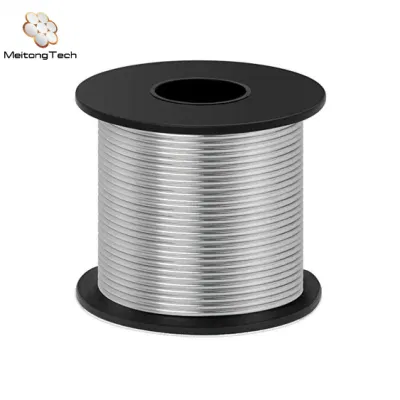

ABS Spool
Specification
7x7x0.25MM
Trademark
NA
Origin
China
HS Code
7614900000
Production Capacity
500000
Product Description

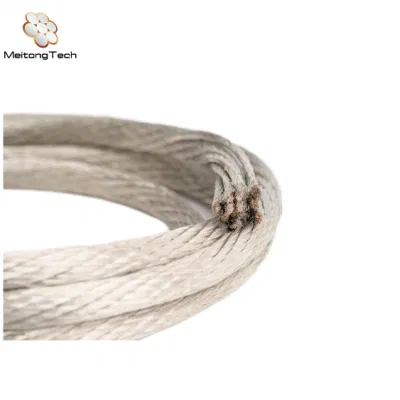

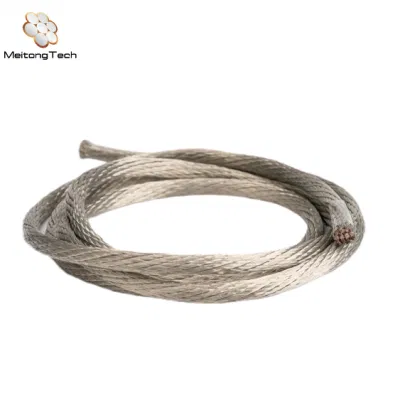

Soft Copper Braided Wire
Ramk:Can be customized

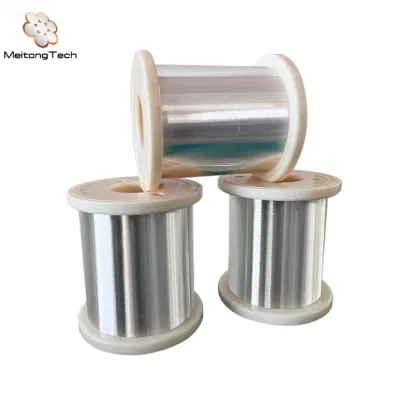

The copper brush wire and tinned copper brush wire is widely suitable for mannufacturing brush Products,our copper
brush wire is made by high pure cathode copper rod,product proferties is much better than the original one.To solve the
brush pressing sintered at high temperature wire brush brittlet fracture problem.
The copper brush wire products standards:SHFS
The copper brush wire products type:TS,TSX,TSR
1.Better price-less expensive than copper,reducing costs of material for cable production.
2.Higher conductivity-electrical conductivity much higher than pure aluminum.
3.Lighter weight-easy to transport and install thus saves labor cost.
TS,TSX
Standard section (mm²) | Calculating section mm² | Structure | Calculating external diameter (mm) | 20ºC direct current resistance(Ω/km) no more than TJR1 TJRX1 | Calculating weight (kg/km) | ||
| Total qty of wires | Qty of wires/ Diameter of a single thread (mm) | ||||||
| 0.16 0.3 0.3 0.5 0.5 0.75 0.75 1 1.5 2 2.5 3 3.5 4 8 10 12 16 | 0.165 0.306 0.275 0.495 0.495 0.754 0.769 0.989 1.484 1.978 2.528 2.967 3.462 3.956 4.945 5.938 6.967 8.007 10.18 11.94 16.12 | 21 39 35 63 63 96 98 126 189 252 322 378 441 504 630 525 616 708 900 1056 1425 | 3*7/0.10 3*13/0.10 7*5/0.10 3*21/0.10 7*9/0.10 3*32/0.10 7*14/0.10 7*18/0,10 7*2710.10 7*36/0.10 7*46/0.10 7*54/0.10 7*63/0.10 7*7210.10 7*90/0.10 7*75/0.12 7*88/0.12 12*59/0.12 12*75/0.12 12*88/0.12 19*75/0.12 | 0.64 0.95 0.81 1.14 1.11 1.44 1.32 1.50 1.85 2.10 2.45 2.61 2.82 2.91 3.27 3.58 3.89 4.49 4.96 5.38 5.97 | 112.42 60.62 67.45 37.47 37.47 24.60 24.12 18.76 12.50 9.38 7.34 6.25 5.36 4.69 3.75 3.12 2.66 2.32 1.82 1.55 1.15 | 118.48 63.89 71.09 39.49 39.49 25.93 25.42 19.77 13.17 9.88 7.73 6.59 5.65 4.95 3.94 3.29 2.81 2.44 1.92 1.64 1.21 | 1.6 3.0 2.7 4.9 4.9 7.5 7.7 9.9 15 19.7 25.2 29.7 34.6 39.5 49.5 59.4 69.6 80 101 119 161 |
| NO. | DIN130MM | DIN185MM | DIN250MM | DIN400MM | DIN800MM |
| A | 130MM | 185MM | 250MM | 400MM | 800MM |
| B | 65MM | 130MM | 160MM | 160MM | 370MM |
| C | 100MM | 160MM | 160MM | 260MM | 490MM |
| D | 120MM | 180MM | 200MM | 290MM | 520MM |
| E | 21MM | 31MM | 31MM | 56MM | 126MM |
- Do you accept OEM or ODM?
Of course.We also have a professional design team who can assistant you to design.
- What is minimum order quantity?
Usually accept 500 kgs for trial order , it is depended on different items with different materials and sizes.Please kindly contact us for details! Thanks!
- What is your sample policy?
1.Paid samples are available as per requirement and specifications.Usually we only charge $50/time,usually within 10kgs.
2.Sample will be sent to you by express with freight collect, so please inform us your courier account number,or you can prepay to us the express cost which we have best channel lower to 70% discount.
- What certification do you have?
Our product has passed the ISO certificate.Quality management system,American needed certification,also complete the BSCl audits.And some other needed third party test report and certifications.
- What information should I let you know if i want to get a quote?
Please offer the specification of the product if possible.Such as material,logo color,size, content list, quantity.etc.Or contact us directly just by a thought.
- What is the delivery date?
Our products are normally shipped about 25 days after order confirmation. But it may take longer or shorter up to different order quantity.
- How can I know order status?
We will acknowledge receipt of your order by e-mail. Some further emails will be sent to you to check about the production details of your goods by specific sales assistant. We will contact you if we have any queries about productions .lf you don't receive any email from us, which means your production goes smoothly and will be shipped as our contract. You can also contact us if you have any question. PP sample photos will send to you before we produce,Bulk sample photo wil send to you before we ship.
