Basic Info.
Model NO.
BR-110
Type
Sliding gate
Control Mode
Semi-Automatic
Communication Interface
RS485, TCP/IP
Power Supply
AC220V/AC110V
Power
120W
Frequency
50Hz/60Hz
Operating Temperature
-20 Degree~+115 Degree
Remote Distance
30m
Barrier Speed
1.5s 3s 6s
Boom Arm Size
45*100mm, 45*86mm
Boom Arm Length
1-6m
Color
Orange&Blue
Model
Br-110
Transport Package
Cartoon
Specification
39*50*104CM
Trademark
JUTAI
Origin
China
HS Code
853080000
Production Capacity
20000
Packaging & Delivery
Package Size
39.00cm * 50.00cm * 104.00cm
Package Gross Weight
50.000kg

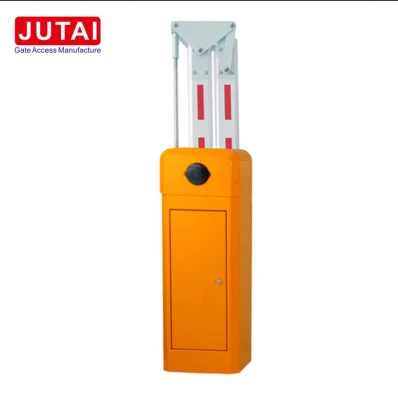

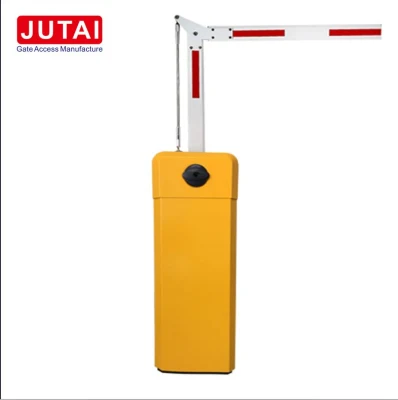

Product Description

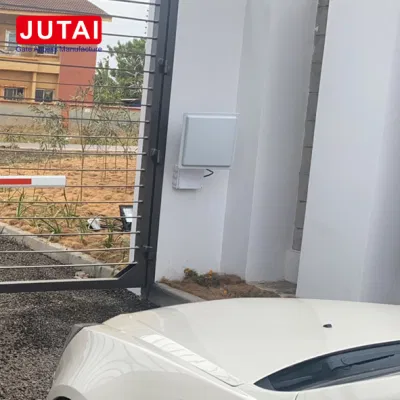

Description Of 24GHz Anti-Smashing/Trigger Millimeter Wave Radar for Barrier Gate in Parking Lot
JUTAI boom barrier is the most common type of vehicle blocking device. It is an entrance and exit management device specially used to manage the driving passage of motor vehicles. It is widely used in highway toll stations and parking lot management systems to achieve the purpose of managing vehicle access.
The boom gate is usually composed of a reduction gear box, a motor, (or a hydraulic) transmission mechanism, a balancing device, a chassis, a barrier arm., etc. The electric gate can be independently realized by a wireless remote control, or can be managed through a parking lot RFID system. The system is automatically managed and is often used in conjunction with the sense of the ground loop detectors (vehicle detectors).
With the increasing number of vehicles, the demand for vehicle access management is also increasing, and people have put forward higher requirements for the performance of the boom gates. Such as the integrated brake movement, the resistance return device, the heating function (ensure to work in the environment of -40 degrees), thermal protection function, automatic clutch device, anti-collision and debar device. The gates have been increasingly developed to high-tech, in order to adapt to the market demand for products, and it is very important tool for the parking system management system.
Advantages Of 24GHz Anti-Smashing/Trigger Millimeter Wave Radar for Barrier Gate in Parking Lot
JUTAI motors are uniquely designed and patented. The motor is made of copper, Hall limiter, thermal protection
Control Board
JUTAI control board adopts imported components. The circuit adopts advanced MCU and Japanese original Omron high-power relay as the core design. Using mature computer control technology, it develops a new generation intelligent control system, which realizes the intelligent control of gates and other controls.
High Quality Spring
In addition to controlling the main board and the motor, the most important part is the spring. The tension and the relaxation of the spring are used to achieve the stable rise and fall of the control boom gate. The JUTAI boom gate spring is a double spring, which has the advantages of long service life and corrosion resistance.
Process Materials
The thickness of the sheet metal is 2.0mm. The cabinet is designed with waterproof structure and the surface is treated with phosphating process. Huacai spraying, high temperature baking and car top coating make the chassis in outdoor harsh environment. It has the characteristics of anti-corrosion, anti-rust, anti-ultraviolet radiation and sun exposure, which is not easy to have problem of color fading. Compared with other company's 1.5mm cabinets, it is more durable and not easy to fade color.
Bottom anti-dip strip
In areas with heavy rain, the gates are often easily immersed in water containing acidic and viscous materials, causing the cabinet to be damaged by corrosion and rust. JUTAI barrier gates are intimately provided with anti-dip strips, which greatly increases the product servicing life.
Multi-Gate Control Can Be Built-in 485 Protocol Module
JUTAI is equipped with RS485 interface and English software, which can realize simultaneous control of 16 units boom gates by the software
Anti-collision Boom
The existing road barrier gate are prone to bending when facing the accidental ram of the vehicle, and even the boom arm is broken, causing great damage to the vehicle and the gate. JUTAI automatic boom gates are equipped with anti-collision arm. When receiving the impulse generated by the impact of the vehicle, the brakes will quickly bounce back to prevent the car from breaking and will not damage the motor.
Double Protection Against Damage
JUTAI also provides infrared photocell beam sensors and vehicle loop detectors for anti-smashing vehicles.
Environmental adaptability
Special antifreeze oil, the motor can still work normally at -40 degrees. When the temperature reaches +75 degrees or more, JUTAI gate Motor has thermal protection function and can still work normally.

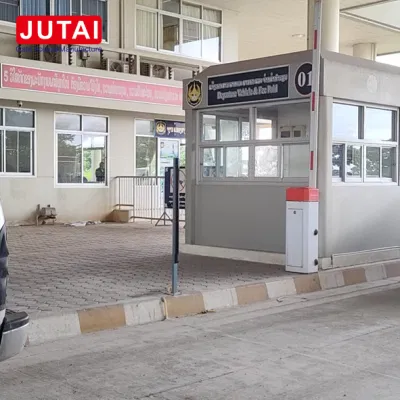

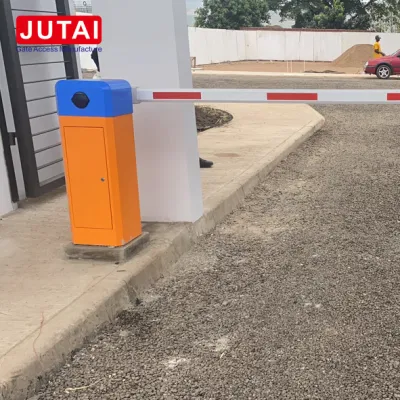

Successful Projects Reference Of 24GHz Anti-Smashing/Trigger Millimeter Wave Radar for Barrier Gate in Parking Lot
JUTAI boom barrier is the most common type of vehicle blocking device. It is an entrance and exit management device specially used to manage the driving passage of motor vehicles. It is widely used in highway toll stations and parking lot management systems to achieve the purpose of managing vehicle access.
The boom gate is usually composed of a reduction gear box, a motor, (or a hydraulic) transmission mechanism, a balancing device, a chassis, a barrier arm., etc. The electric gate can be independently realized by a wireless remote control, or can be managed through a parking lot RFID system. The system is automatically managed and is often used in conjunction with the sense of the ground loop detectors (vehicle detectors).
With the increasing number of vehicles, the demand for vehicle access management is also increasing, and people have put forward higher requirements for the performance of the boom gates. Such as the integrated brake movement, the resistance return device, the heating function (ensure to work in the environment of -40 degrees), thermal protection function, automatic clutch device, anti-collision and debar device. The gates have been increasingly developed to high-tech, in order to adapt to the market demand for products, and it is very important tool for the parking system management system. Advantages Of 24GHz Anti-Smashing/Trigger Millimeter Wave Radar for Barrier Gate in Parking Lot
JUTAI motors are uniquely designed and patented. The motor is made of copper, Hall limiter, thermal protection
Control BoardJUTAI control board adopts imported components. The circuit adopts advanced MCU and Japanese original Omron high-power relay as the core design. Using mature computer control technology, it develops a new generation intelligent control system, which realizes the intelligent control of gates and other controls.
High Quality SpringIn addition to controlling the main board and the motor, the most important part is the spring. The tension and the relaxation of the spring are used to achieve the stable rise and fall of the control boom gate. The JUTAI boom gate spring is a double spring, which has the advantages of long service life and corrosion resistance.
Process MaterialsThe thickness of the sheet metal is 2.0mm. The cabinet is designed with waterproof structure and the surface is treated with phosphating process. Huacai spraying, high temperature baking and car top coating make the chassis in outdoor harsh environment. It has the characteristics of anti-corrosion, anti-rust, anti-ultraviolet radiation and sun exposure, which is not easy to have problem of color fading. Compared with other company's 1.5mm cabinets, it is more durable and not easy to fade color.
Bottom anti-dip strip In areas with heavy rain, the gates are often easily immersed in water containing acidic and viscous materials, causing the cabinet to be damaged by corrosion and rust. JUTAI barrier gates are intimately provided with anti-dip strips, which greatly increases the product servicing life.
Multi-Gate Control Can Be Built-in 485 Protocol ModuleJUTAI is equipped with RS485 interface and English software, which can realize simultaneous control of 16 units boom gates by the software
Anti-collision BoomThe existing road barrier gate are prone to bending when facing the accidental ram of the vehicle, and even the boom arm is broken, causing great damage to the vehicle and the gate. JUTAI automatic boom gates are equipped with anti-collision arm. When receiving the impulse generated by the impact of the vehicle, the brakes will quickly bounce back to prevent the car from breaking and will not damage the motor.
Double Protection Against DamageJUTAI also provides infrared photocell beam sensors and vehicle loop detectors for anti-smashing vehicles.
Environmental adaptability
Special antifreeze oil, the motor can still work normally at -40 degrees. When the temperature reaches +75 degrees or more, JUTAI gate Motor has thermal protection function and can still work normally.
Successful Projects Reference Of 24GHz Anti-Smashing/Trigger Millimeter Wave Radar for Barrier Gate in Parking Lot
