Basic Info.
Wire Core Material
Copper Ciad Steel
Certification
CE, RoHS
Model
Rg59 Cable
Brand
OEM
Inner Conductor
Copper Clad Steel
Insuiation
Foamed PE
Outer Condcutor
Aluminum Wires
Jacket
PVC
Power Cable
CCA
Certificate
Ce/RoHS
Transport Package
Packed by Carton/Wooden Drum/Wooden Pallet
Specification
RG59
Trademark
OEM
Origin
Hangzhou, China
HS Code
8544200000
Production Capacity
24000km/Year
Product Description
Specification
Application:Local Communication Cable
Conductor Material:Copper
Type:Coaxial Cable
Cover Material:PE
Certification:CE,UL,SGS,ISO9001.ROHS
Jacket:PVC
Jacket Color:Black/White/Color
Impedance:75 Ohm
Braid Shied Material:Bc, Tc, CCA, CCS, Al-Mg(60%-95%)
Inner Conductor:CCS, CCA, Cu
Inner Conductor Diameter:0.8-1.3mm
Certificate:ISO9001, Cl2/CATV/Cm UL
Dielectric:3.66-5.72mm
Insulation Material:Bonded/Non Bonded
Jacket Diameter:6.1-8.08mm
Export Markets:Global
Product Description
1. RG11 RG59 RG6 Specifications:
1) Inner Conductor: CCS, CCA, CU
2) Dielectric: Foam PE or Solid PE
3) Al Foil: Bonded, Non-bonded, Single, Double
4) Braiding Wire Material: Cu, Al-Mg, TC
5) Braiding Wire Diameter: 0.12mm, 0.15mm, 0.16mm
6) Braiding Net: 48, 64, 72, 80, 96, 128 and more
7) Coverage: 40%, 50%, 60%, 80%, 90% and more
8) PVC Degree: 60, 65, 68, 70, 75
9) Jacket: PE or PVC
10) OEM and Customer's designation are welcome
Such as: 0.81mm CCS Conductor; Foamed PE Dielectric; Bonded Al Foil& 64/0.12mm Al braid; 6.91 PVC jacket white
Applications:
Use for Video doorphone monitory system,cabling system of Nultimedia teaching,Intelligent home furnishing.etc
CCTVCABLE RG59 with Power Construction:
If you have any inquiry of coaxial cable, please contact with us!!!
Application:Local Communication Cable
Conductor Material:Copper
Type:Coaxial Cable
Cover Material:PE
Certification:CE,UL,SGS,ISO9001.ROHS
Jacket:PVC
Jacket Color:Black/White/Color
Impedance:75 Ohm
Braid Shied Material:Bc, Tc, CCA, CCS, Al-Mg(60%-95%)
Inner Conductor:CCS, CCA, Cu
Inner Conductor Diameter:0.8-1.3mm
Certificate:ISO9001, Cl2/CATV/Cm UL
Dielectric:3.66-5.72mm
Insulation Material:Bonded/Non Bonded
Jacket Diameter:6.1-8.08mm
Export Markets:Global
Product Description
1. RG11 RG59 RG6 Specifications:
1) Inner Conductor: CCS, CCA, CU
2) Dielectric: Foam PE or Solid PE
3) Al Foil: Bonded, Non-bonded, Single, Double
4) Braiding Wire Material: Cu, Al-Mg, TC
5) Braiding Wire Diameter: 0.12mm, 0.15mm, 0.16mm
6) Braiding Net: 48, 64, 72, 80, 96, 128 and more
7) Coverage: 40%, 50%, 60%, 80%, 90% and more
8) PVC Degree: 60, 65, 68, 70, 75
9) Jacket: PE or PVC
10) OEM and Customer's designation are welcome
Such as: 0.81mm CCS Conductor; Foamed PE Dielectric; Bonded Al Foil& 64/0.12mm Al braid; 6.91 PVC jacket white
Applications:
Use for Video doorphone monitory system,cabling system of Nultimedia teaching,Intelligent home furnishing.etc

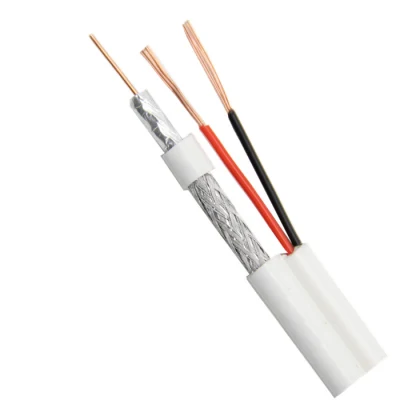

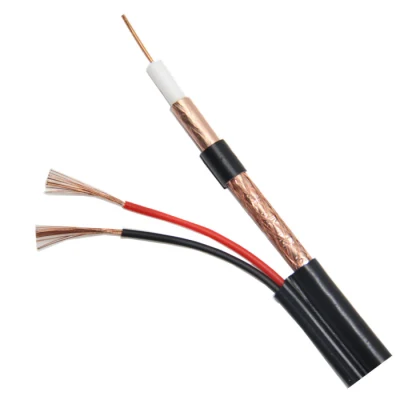

CCTVCABLE RG59 with Power Construction:
| Specification | ||
| Item | CCTV CABLE RG59 with DC for CCTV Camera | |
| Inner Conductor | 20AWG,0.81mm CCS | |
| Insulation | 3.66mm Foamed PE | |
| Shield | Bonded Al Foil | |
| Braid Shield | 128x0.12mm AL wires Braid (85% Coverage) | |
| PVC Jacket | 6.1+0.1mm PVC Jacket | |
| Power Cable | 7x0.37mm CCA+1.8mm Red PE | |
| 7x0.37mm CCA+1.8mm Black PE | ||
| Outer Jacket | 4.0+0.1mm PVC Jacket | |
| Note: Other specifications according to customer requirements!!! | ||
| Electrical Characteristics | ||
| Impedance: 75+/-3 Ohm | Return Loss | 5-1000MHz≥22dB |
| Capacitance: 52+/-2 pF/M | 1000-2000MHz≥20dB | |
| Velocity of Propagation: 85% | Screening Effectiveness≥70dB | |
| Attenuation(@20ºC) | ||
| Frequency (MHz) | Max Attenuation (dB/100FT) | Max Attenuation (dB/100M) |
| 5 | 0.9 | 2.8 |
| 55 | 2.1 | 6.7 |
| 187 | 3.6 | 11.8 |
| 211 | 3.8 | 12.5 |
| 400 | 5.1 | 16.7 |
| 500 | 5.7 | 18.7 |
| 750 | 7.0 | 22.8 |
| 860 | 7.5 | 24.6 |
| 1000 | 8.0 | 26.3 |
| 1500 | 9.9 | 32.5 |
| 1800 | 10.9 | 35.6 |
| 2200 | 12.6 | 41.2 |
| 3000 | 13.8 | 45.2 |
If you have any inquiry of coaxial cable, please contact with us!!!
