Basic Info.
Model NO.
F2000/A2000/711 Series
Specification
F2000
Trademark
RETEK
Origin
China
Product Description

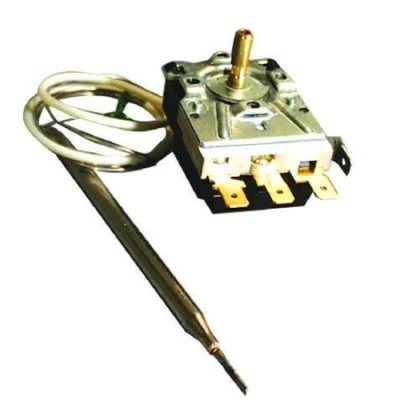

F2000/A2000/711 Series Freezer Cooler Showcase thermostat temperature controller
Capillary Thermostat For Hot Water Heaters, Water Heaters Capillary Thermostat
used for electric water heater, water boiler, electric oven, warm air heater, washing machine, fried pan
capillary thermostat
oven thermostat
VDE CE certificate
Hight quality
competitive price
OEM order welcomed
| Minimum current | 200mA |
| Product life | ≥100000 Times |
| Electrical strength | AC2000V/ 1 min |
| insulation resistance | ≥100M Ω |
| contact resistance | ≤50M Ω |
| Temperature response rate | ≤1ºC/ min |
| Body maximum tolerance temperature | T150ºC |
| On-off form | S.P.S.T and S.P.D.T |
High temperature Thermostat features:
1) Designed temperature range: -30°C ~ 320°C
2) Capillary Length from 300 to 2500mm
3) Shaft height: 0-30mm
4) Fitting size:28±0.2mm
5) On-off temperature difference: 2 ~15
6) Insulation Resistance: >=100MΩ
7) Contact resistance:<=50MΩ
8) Rated at 16A/250V 50/60Hz
9) Electric Strength: 800v/s between two pin.
10) Operating life: no less than 100,000time
