DC-18GHz Sp6t Electromechanical Relay RF Coxial Swtich with SMA Type Connector Latching/Failsafe Ttl, Actuator Voltage, Pin Optional

Product Name: DC-18GHz Sp6t Electromechanical Relay RF Coxial Swtich with SMA Type Connector Latching/Failsafe Ttl, Actuator Voltage, Pin Optional SEO Description: We are a factory specializing in DC-18GHz Sp6t Electromechanical Relay RF Coxial Swtich with SMA Type Connector Latching/Failsafe Ttl, Actuator Voltage, Pin Optional. Contact us now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
J760S
Materials
Stainless Steel
Standard
SMA Connector
Frequency
DC - 18GHz
Actuator Voltage
12V/24V/28V
Position Numbers
4/5/6
Ttl Options
with/Without
Pin Options
D-SUB 15 Pins/D-SUB 9 Pins
Vswr (Max.)
1.3/1.4/1.5
Insertion Loss (Max)dB
0.3/0.4/0.5
Isolation (Min)dB
70/60/60
Impedance
50 Ohm
Switching Time(Max)
< 15 Ms
Connector
SMA-Female
Temperature Range
-25 to +65
Operation Life (Cycles)
1, 000, 000(Standard)
Vibration (Operating)
10g RMS, 20-2000Hz
Mechanical Shock (Non-Operating)
50g, 1/2sine, 11msec
Transport Package
Cartons
Specification
none
Trademark
JML
Origin
Shenzhen, Guangdong, China
HS Code
8536500000
Production Capacity
5000 Piece Per Month

Product Description

Technical Parameters.
In order to give you the best price, please kindly specify your requirements as clearly as possible.
OEM and ODM is welcome, we have professional and experienced engineer team for you.

Features:

  • High Performance
  • High Reliability
  • Low Insertion Loss
  • High Isolation

Applications:

  • Radar Systems
  • Communication Systems
  • Receiving Systems
DC-18GHz Sp6t Electromechanical Relay RF Coxial Swtich with SMA Type Connector Latching/Failsafe Ttl, Actuator Voltage, Pin Optional
Part Number Selection:
DC-18GHz Sp6t Electromechanical Relay RF Coxial Swtich with SMA Type Connector Latching/Failsafe Ttl, Actuator Voltage, Pin Optional
Electrical Specification:

Numbers of Frequency Range VSWR Insertion Loss Isolation Impedance
Positions (GHz) (max.) (max)dB (min)dB (Ω)
4-6 DC-6 1.30 0.3 70 50
6-12.4 1.40 0.4 60
12.4-18 1.50 0.5 55
Normally Open TTL 9-Pin D-sub Pinout Normally Open 15-Pin D-sub Pinout Normally Open TTL 15-Pin D-sub Pinout
n=1-6 Vn(Jn-COM) n=1-6 Vn(Jn-COM) n=1-6 An(Jn-COM)
7 / 7 COM(-) 7 COM(-)
8 +VDCl 8 1(IND: J1-C) 8 1(IND: J1-C)
9 COM(-) 9 2(IND:J2-C) 9 2(IND:J2-C)
    10 3(IND:J3-C) 10 3(IND:J3-C)
    11 4(IND:J4-C) 11 4(IND:J4-C)
    12 5(IND:J5-C) 12 5(IND:J5-C)
    13 6(IND:J6-C) 13 6(IND:J6-C)
    14 COM_l 14 COM_l
    15 +VDCl 15 +VDCl


Package and Shipment Details:
1) Neutral Master Carton Package;
2) Customized Package;
DC-18GHz Sp6t Electromechanical Relay RF Coxial Swtich with SMA Type Connector Latching/Failsafe Ttl, Actuator Voltage, Pin Optional

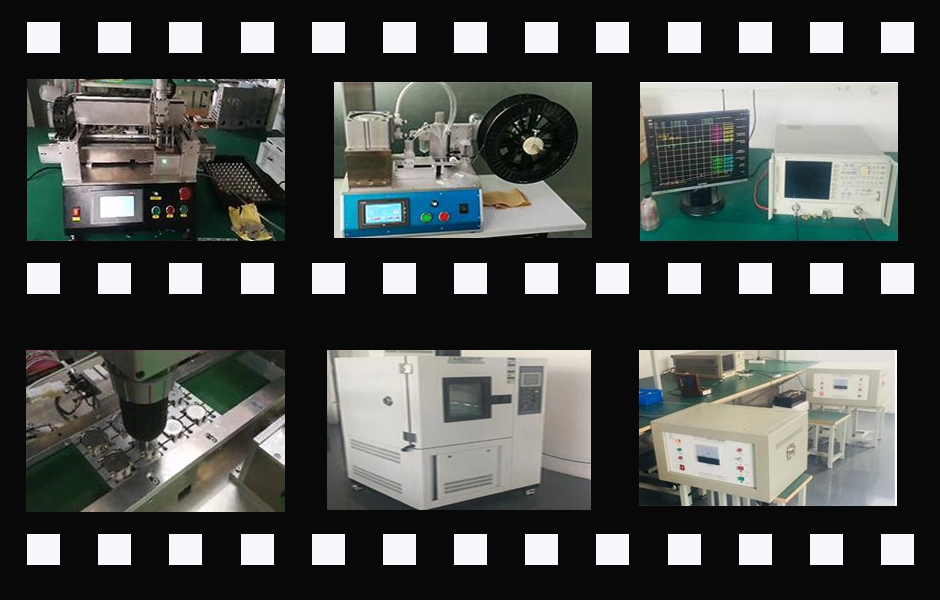

Product Equipment Line:
DC-18GHz Sp6t Electromechanical Relay RF Coxial Swtich with SMA Type Connector Latching/Failsafe Ttl, Actuator Voltage, Pin Optional

Quality Controls:

With more than 10 years experience, we produce A-Grade voltage stabilizer/regulator and can offer OEM & ODM service.
All our products have CE certificate and some have obtained patent.
DC-18GHz Sp6t Electromechanical Relay RF Coxial Swtich with SMA Type Connector Latching/Failsafe Ttl, Actuator Voltage, Pin OptionalDC-18GHz Sp6t Electromechanical Relay RF Coxial Swtich with SMA Type Connector Latching/Failsafe Ttl, Actuator Voltage, Pin Optional
About us

Shenzhen Xin Poming Power Equipment Manufacturing Co., Ltd is established in Guangdong Province of China in 2007, which manufactures and sells voltage regulators, transformers, UPSs, frequency converter, DC power sources and other power products and can provide systemic power solutions for customers with it's complete product list For clients around the world .

DC-18GHz Sp6t Electromechanical Relay RF Coxial Swtich with SMA Type Connector Latching/Failsafe Ttl, Actuator Voltage, Pin Optional


Clients
DC-18GHz Sp6t Electromechanical Relay RF Coxial Swtich with SMA Type Connector Latching/Failsafe Ttl, Actuator Voltage, Pin Optional

FAQ(Frequent Asked Qestions)

Q: What RF switch configurations are available?

A: Below are our popular configurations for your reference, besides, we accept customization.

Electro-mechanical switches: 1P2T (single-pole, double-throw); 1P3T; 1P4T; 1P6T; 1P8T; 1P12T

Solid-state switches: 1P1T; 1P2T; 1P3T; 1P4T; 1P6T; 1P8T; 1P10T; 1P12T; 1P16T

Q: What control options are available?

A: Depending on model, EM RF switches offer TTL logic-level control, or +12, +15 or +28 V DC control. Solid-state switches use TTL logic levels, and one model has a USB interface.

Q: Are the RF switch attenuators bi-directional?

A: All of XINPOMING's RF switches are bi-directional unless noted differently on the specification sheet.

Q: I need a custom RF switch designed. How much are your typical NREs (non-recurring engineering charges)?

A: XINPOMING does not charge NREs. Please send your custom requirement to us for details communication.

Q: Are your 18GHz electro-mechanical switches available with indicators or as latching?

A: Typical options: latching, self-terminating, indicators, TTL, RoHS and non-RoHS.


You're welcomed to contact us for any questions.
