Basic Info.
Model NO.
3.5/2.4-JJ, JK, KJ, KK
Classification
Male Connector
Interface Type
3.5mm&2.4mm
Shape
Hexagonal
VSWR
Straight
Medium Pressure
1000V
Brand
Ezcon
Mating Cycles
>1000 Cycles
Plating of Pin
Au,Silver
Plating of Body
Au,Nikel,Ternary,Silver
Transport Package
Box
Specification
CE, RoHS,
Trademark
EZCON
Origin
Changzhou, China
HS Code
8536901900
Production Capacity
50000PCS/Year
Packaging & Delivery
Package Size
25.00cm * 15.00cm * 12.00cm
Package Gross Weight
0.500kg
Product Description

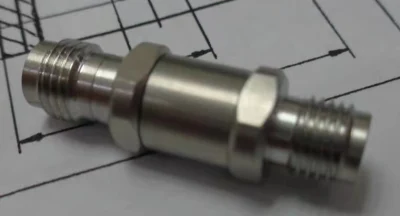

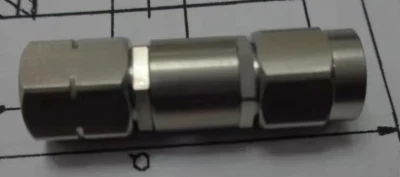

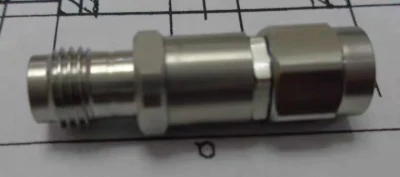

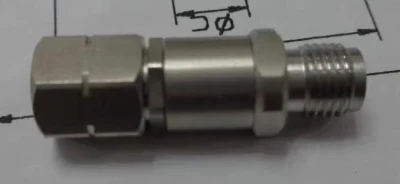

3.5/2.4 Precision coaxial connector for microwave applications. The maximum frequency is
26.5GHz.
Design in accordance with: IEEE287™ -2007
Standard materials and finish
Electrical Characteristics
Mechanical
Environmental
Temperature range: -55° C~+155° C
Dimensional drawings
COMPANY SHOW
EZCON is a product and solution provider, the company provide high quality, high performance and low cost cable assembly/connector products. EZCON engages in R&D, for telecom and electronics products with focus on RF cable assemblies/connectors, high speed interconnect cable assemblies/connectors and high end test/calibration products. The company has the capacity of product design, engineering service, low cost production/sourcing, assembly, and testing. EZCON combines the advantages of low cost production in China with a high level of engineering expertise, service, and quality.
Company Products and Technologies
Main Company Equipments And Production line
Products application sites
Company Certification
FAQ
1.Q: What's your MOQ?
A: 50 pcs
2.Q: What's your delivery time?
A:7-14 days after receiving PO.
3.Q: Does your company do customerized design?
A: Yes, we do OEM and ODM
4.Q:What is your after sale service program?
A: Please see our service manual for details.
5. Q: Can you send samples to us for test?
A: Yes, samples can be sent at acost.
WHY CHOOSE EZCON
1)Sales directly to customer
2) First class performance, highest quality and life cycle
3) Fast delivery: 1-2 working days
4) Customerized Design
5) Very competitive price
7) Fast, enthusiastic, thoughtful, caring, and excellent service.
8) Quick response(replying within 30 minutes of receiving request)
Our service
1. Email reply within 24 hours
2. One stop solution for electronic components ,service and manufacturing
3. Each piece must pass precision test
4.Quality after-sales service
26.5GHz.
Design in accordance with: IEEE287™ -2007
Standard materials and finish
| Center conductor | Beryllium copper, gold plated |
| Insulator | PEI |
| Outer conductor | Stainless steel, Passivated |
Electrical Characteristics
| Characteristic Impedance | 50Ω |
| Frequency range | DC-26.5GHz |
| VSWR | 1.15: 1 max |
| Insulation resistance | 5000MΩ Min |
| Test voltage | 1000V |
Mechanical
| Coupling torque | 1.69N*m max |
| Mating cycles | 1000cycles min |
Environmental
Temperature range: -55° C~+155° C
Dimensional drawings
