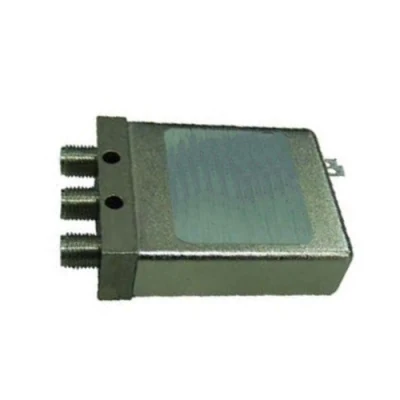

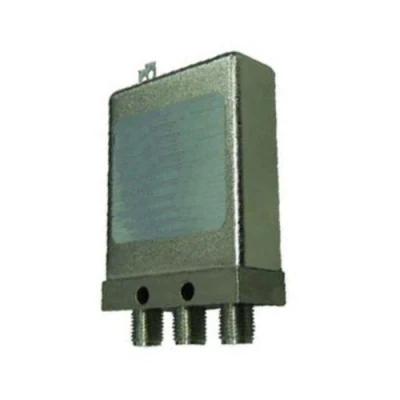

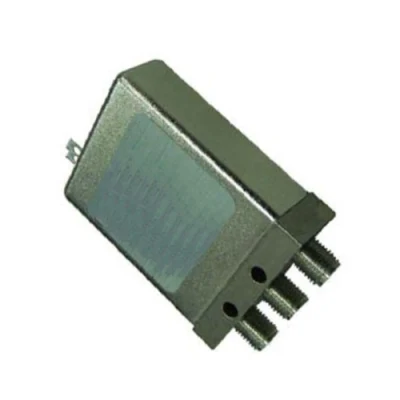

DC-26.5GHz DC12V, 24V, 28V Without Termination & With TTL RF Microwave Type SPDT Coaxial Switch
Coaxial switches could be controlled by voltage or computer programmable and are used in switching over in microwave circuit. According to the amount of output ports they include SPDT-SP8T, 2PDT, 2P3T and Transfer etc.
SWT-801 serial coaxial switches' frequency range DC-26.5GHz and the features include low Insertion Loss,low VSWR and excellent wide-band performance.
RF Characteristics
Specifications
Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave antennas, active and passive components and subsystems. The company's product field covers a variety of microwave communication devices, including anti-jamming antennas, RF power amplifiers, T/R modules, VCO/DROs, microwave filters, duplexers, frequency sources, and related subsystems, which are widely used in mobile communications, radar, and other fields.
In order to meet the special needs and higher requirements of customers, in addition to standard products, we provide customized product development methods. We always provide the customers with fast and high-quality products and services.
Q&A:
Q5: Delivery Date of the sample by DHL/FedEx
Coaxial switches could be controlled by voltage or computer programmable and are used in switching over in microwave circuit. According to the amount of output ports they include SPDT-SP8T, 2PDT, 2P3T and Transfer etc.
SWT-801 serial coaxial switches' frequency range DC-26.5GHz and the features include low Insertion Loss,low VSWR and excellent wide-band performance.
RF Characteristics
| Frequency (GHz) | VSWR | Isolation (dB) | Ins. Loss (dB) |
| 0~2 | 1.15 | 90 | 0.2 |
| 2~4 | 1.2 | 80 | 0.2 |
| 4~8 | 1.3 | 75 | 0.25 |
| 8~12 | 1.4 | 65 | 0.35 |
| 12~18 | 1.5 | 60 | 0.4 |
| 18~26.5 | 1.6 | 55 | 0.6 |

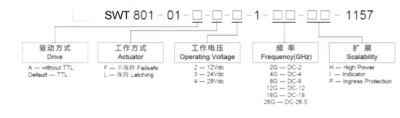

Specifications
| Operating Voltage | DC12V, 24V, 28V |
| Coil Current | 150mA/12V,80mA/24V,70mA/28V |
| Switch Time | ≤15ms |
| Operating Temperature | -40ºC~+85ºC |
| Storage Temperature | -55ºC~+85ºC |
| Mechanical Life,circles | ≥106 |
| TTL Drive Voltage | 2.5~5V |
| TTL Drive Current | 0.02~0.8mA |
| Impedance | 50Ω |
| Weight | 45g |

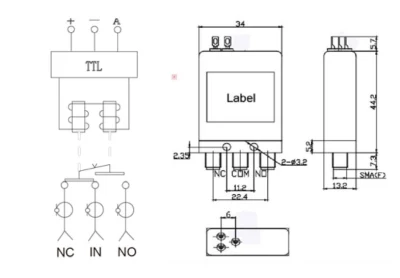

Notes:
1. Dimensions Tolerance ±2%
2. Custom designs available.
