Basic Info.
Product Description
MECHANICAL SPECIFICATIONS
| Connectors | Female Pin | Housing | Temp Range | Dimensions (mm) | Weight | Average Power | Connector Type | NOMINAL IMPEDANCE |
| Brass Nickel Plated | Beryllium Copper Gold Plated | Aluminum, Blue Spray Painting | -40°C~+65°C | 186×19×157 | 805g | 2W | N (F, F) | 50 |
| Model Number | Frequency Range(GHz) | Bandwidth (MHz) | Attenuation Range(dB) | Max VSWR | Insertion Loss(dB) |
SWTS2-50-4-E | 0.5-4 | 200 | >20dB(f:1GHz) 15dB~16dB(f<1GHz) | 1.5 | ≤0.5 |
Notes:
- Dimensions Tolerance ±5%
- Custom designs available for other special attenuation value & accuracy

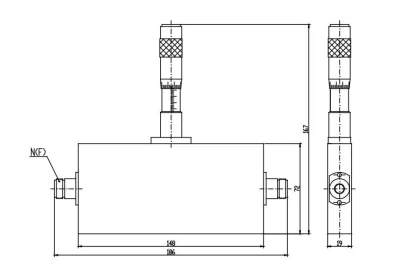

OUTLINE DRAWING
Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave antennas, active and passive components and subsystems. The company's product field covers a variety of microwave communication devices, including anti-jamming antennas, RF power amplifiers, T/R modules, VCO/DROs, microwave filters, duplexers, frequency sources, and related subsystems, which are widely used in mobile communications, radar, and other fields.
In order to meet the special needs and higher requirements of customers, in addition to standard products, we provide customized product development methods. We always provide the customers with fast and high-quality products and services.
Default packaging. Normally carton, the packaging may be different if there is different production batch.
Port of Delivery: Shanghai
Shipment:
Dear customer,
please choose the most convenient method of shipment for you.
We have long-term cooperation with shippment agent, they will provide us the lowest quotation with the best service.
If you have a Courier account, please tell us before the confirmation of order.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample ususally take within 3 working days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: For standard product, usually 1pcs/item. For the OEM order, MOQ at least 50pcs/item.
Q4. How to proceed an order?
A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a alibaba paying link.
Q5. After paid, what info of the supplier provided?
A: Tracking number
Q6: Do you offer guarantee and after-service for the products?
A: Yes, 6- 12 months warranty for our products. Note: We will do not take the responsibility for Man-made damage or improper operation. Delivery demage will be negotiate
