Product Description

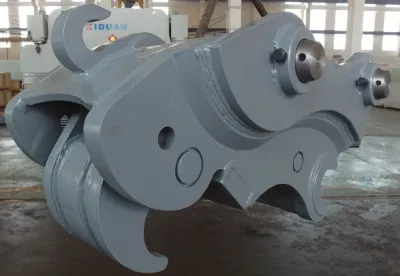

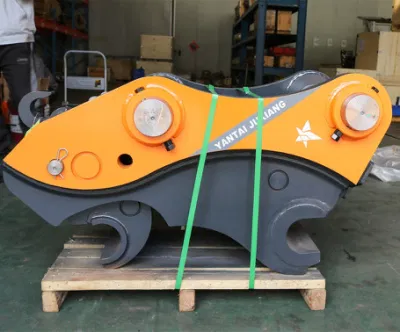

Juxiang Quick Coupler for Attachments
Short Description:
Quick connectors can enhance the flexibility of excavators, thereby improving their operational efficiency. Unlike traditional excavators that require manual switching of various tools and attachments, quick connectors allow for swift and convenient replacement of tools and attachments, resulting in significant time and labor cost savings.
1. Driven by hydraulic oil, operate efficiently.
2. Cylinder with a safety valve can prevent the attachments from falling
| Model | Unit | JXK-MINI | JXK-02 | JXK-04 | JXK-06 | JXK08 |
| Length | mm | 300-450 | 550-595 | 581-610 | 795-825 | 888-980 |
| Height | mm | 246 | 312 | 310 | 388 | 492 |
| Width | mm | 175 | 258-263 | 270-280 | 353-436 | 449-483 |
| Pin distance | mm | 80-150 | 230-270 | 290-360 | 380-420 | 460-480 |
| Width | mm | 80-140 | 155-170 | 180-200 | 232-315 | 306-340 |
| Cylinder stroke length | mm | 95-200 | 200-300 | 300-350 | 340-440 | 420-510 |
| Up pin-down pin | mm | 159 | 200 | 200 | 260 | 325 |
| Weight | kg | 30 | 60-70 | 80-90 | 220-250 | 400-430 |
| Operating Pressure | Kg/cm² | 200 | 200 | 200 | 200 | 200 |
| Oil Flow Range | L/min | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
| Suits Excavator | t | 1.5-4 | 4-7 | 5-8 | 9-19 | 17-23 |
In order to better protect the safety of your goods, we will provide professional, environmentally friendly, convenient and efficient packaging services.

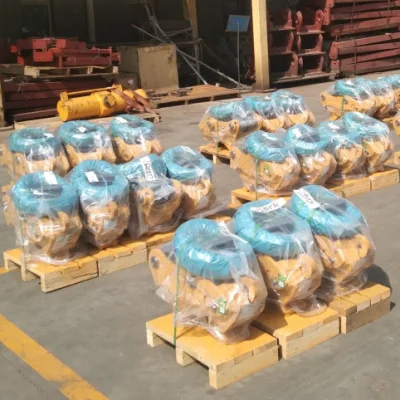

Packaging details: Export wooden box packaging or as per customer requirements.
Delivery Details: Shipping takes approximately 20 -30 working days after payment.
We will test the products before delivery to ensure that each machine is qualified. This is our responsibility and we are responsible to our customers. Then we load the goods onto container trucks and transport them to the port
1. Juxiang Quick Coupler is made of high-strength manganese steel and features an integrated mechanical design, ensuring durability and suitability for various tonnage excavator assembly needs.
2. The cabin is equipped with electric switches, which replace costly hydraulic systems with electricity, making it more convenient for the driver to operate.
3. Each hydraulic cylinder is equipped with a hydraulic control one-way valve and a mechanical lock safety device, ensuring that the quick connector can function properly even when the oil and electrical circuits are cut off.
4. A safety pin protection system is installed on each quick connector, providing an additional layer of protection in case of failure of the quick connector hydraulic cylinder, thus acting as a "double insurance".
1. Q:How to chose the suitable model?
A: Please kindly advise your excavator weight or model, then we will help you to decide the suitable model.
2. Q: Is your vibro driver dangerous for work?
A: Our machine operate contact-free and there is no impact force on the drill rod, so our machine is not dangerous for work.
3. Q:Is your size can be custome made?
A:Yes, we can custom made according to your requests.
4. Q:Do you offer after-sale service?
A: Yes, we will offer you machine operation instructions. 6 months of warranty time for the motor will be offered to our customer dating from the receipt day. Besides, we will offer life long technical instruction.
5.Q:How To Order:
1. Please tell us the model with quantity and other requirement which you needed.
2. We issue the Proforma Invoice to you after confirmed the price and other details.
3. We arrange the order production upon receipt of confirmed PI and your deposit or original L/C.
4. After the goods is ready to ship, we will inform you the shipment date and other informations by email at the same time.
5. We will help to track your goods until you receive them safely.
