Basic Info.
Model NO.
SHV-C-J3B
Classification
Female Connector
Shape
Strip
VSWR
<1.3 @DC-300MHz
Brand
Four Star
Material
Brass and PTFE
Impedance
50 Ohm
Frequency Range
DC-300MHz
Conductor Plating
Tri-Alloy and Gold
Certification
Ce/ISO9001/RoHS
Product Name
Female Waterproof Automotive Connector
Coupling Nut Torque
7ncm-28ncm
Operating Temperature
-50~ + 125 Degree
Transport Package
Box
Origin
Zhenjiang City, Jiangsu Province, China
HS Code
85369090
Production Capacity
50000pieces/Year
Packaging & Delivery
Package Size
19.00cm * 9.00cm * 6.00cm
Package Gross Weight
0.500kg
Product Description

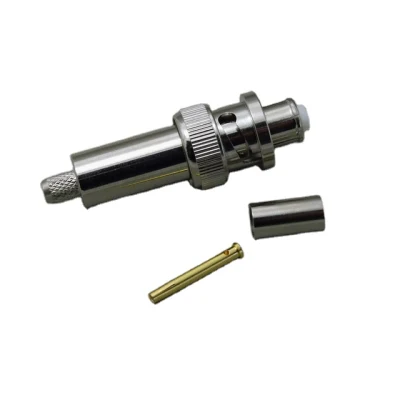

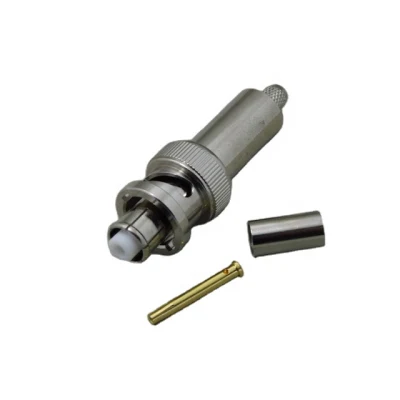

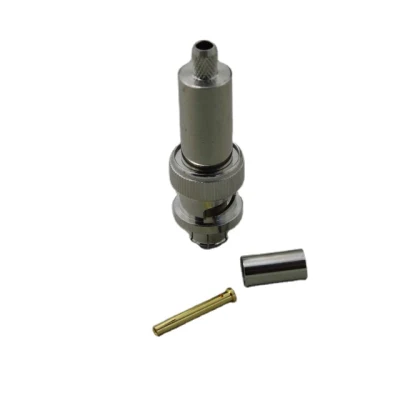

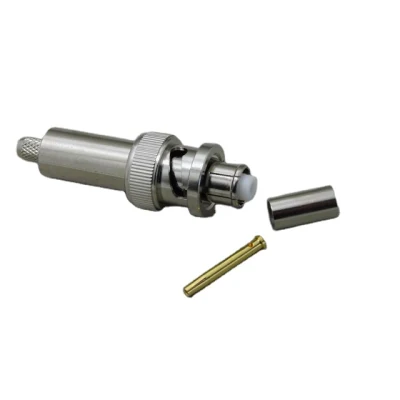

SHV Connector Male Plug Crimp for RG58 Cable LMR195 Cable
SHV Plug(Male) Crimp Connector For RG58 Cable(SHV-C-J3J)
(Contact attachment:Inner:soldering ;Outer:crimp)
Interface
According to IEC 60498 NIM ND-545
Electrical
Characteristic Impedance 50 ohm
Frequency Range DC-300MHz
VSWR ≤1.20@DC-300MHz
Dielectric Withstanding Voltage ≥5000V RMS,50Hz,at sea level
Working Voltage ≤3500V RMS 50Hz
Dielectric Resistance ≥10000MΩ
Current Rating(continuous) ≤10A
Contact Resistance Center Contact ≤2.0mΩ
Outer Contact ≤1.5mΩ
Mechanical
Coupling Nut Torque 7Ncm-28Ncm
Coupling Nut Retention Force ≥450N
Contact Captivation ≥27N
Durability (Mating cycles) ≥500
Material and plating
Material Plating
Body Brass Ni
Insulator PTFE -
Center conductor Phosphor bronze Au
Spring Beryllium bronze Ni
Coupling nut Brass Ni
Ferrule Annealed copper Ni
Environmental
Temperature Range -55ºC~+125ºC
RoHS Compliant Yes
