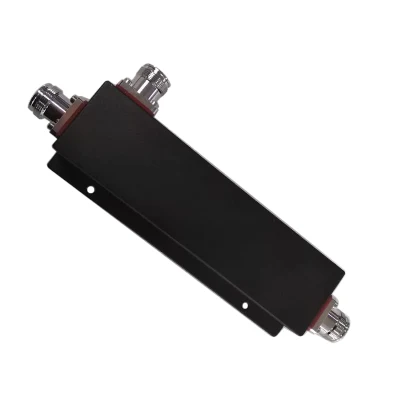

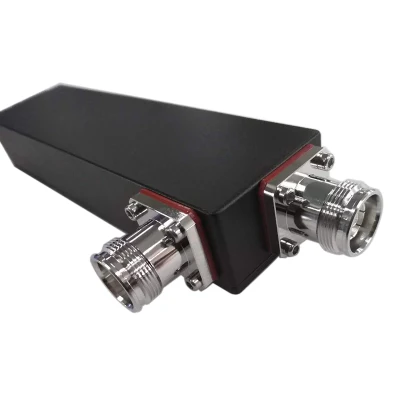

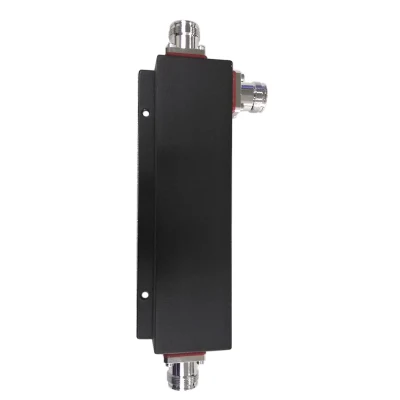

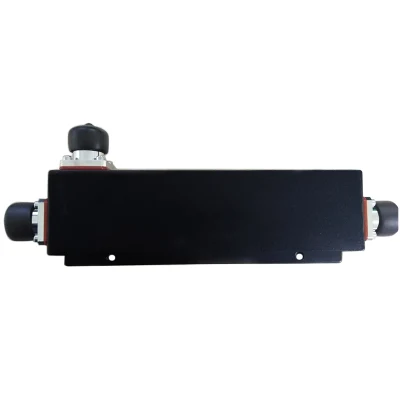

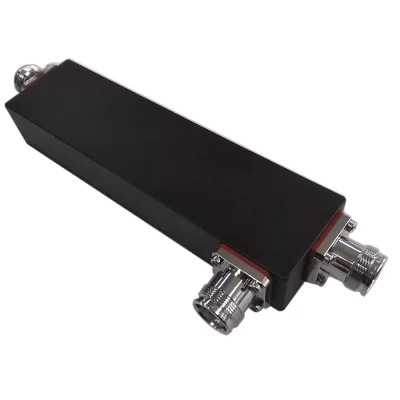

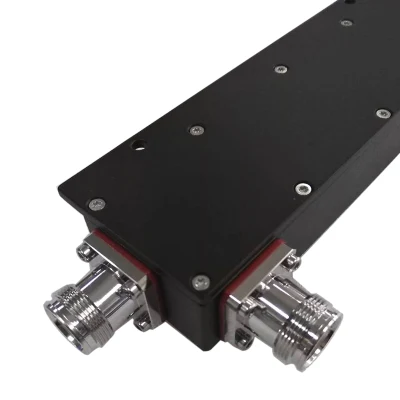

300W 6dB Directional Coupler(380-3800MHz,-160dBc, 4.3-10 Female, IP65)
RF directional couplers are passive devices that couple power travelling through the device to another port enabling the signal to be used in another circuit. Microwave Directional couplers are used in a wide range of applications. RF directional couplers are used to sample energy from the transmission line where this energy is fed to a detector and then to a signal processing equipment. Return loss measurement is another application that couplers are used.
Topwave Telecom model TPW-DC-XX-3838-160-41F(XX means coupling in dB), a 6~30dB wideband 380-3800MHz low PIM directional coupler with 4.3-10 type connector. Such wide band directional coupler mainly design for 5G, it is Topwave customized product. The directional coupler can capable of 300 watt power rating, and its PIM can reach -153dBc, -155dBc even -161dBc. Topwave have stocks in hand, can ship out in same day.
| Features & Benefits |
·Guaranteed PIM Compliance
·Wide Frequency Band Covering 380-3800MHz
·Low Insertion Loss
·Low VSWR
·Indoor & Outdoor Using IP65
·Available with Type N, 7/16DIN, 4.3/10 Connectors
| Electrical & Mechanical Specifications |
| Model No. | TPW-DC-06-3838-160-41F | |||||
| Coupling(dB) | 6 | |||||
| Accuracy(dB) | ±1.8 | |||||
| Insertion Loss(dB) | ≤2.1 | |||||
| Isolation | ≥22 | |||||
| Freq(MHz) | 380-3800MHz | |||||
| VSWR | ≤1.35 | |||||
| PIM Rating(dBc) | -160dBc@2x43dBm | |||||
| Power Rating(W) | 300W (average Per Port) | |||||
| Impedance | 50 ohm | |||||
| Connector | 4.3-10 Female | |||||
| Color | Black | |||||
| Operating Temperature(ºC) | -30°C to +65°C | |||||
| Application | Indoor & Outdoor IP65 | |||||
