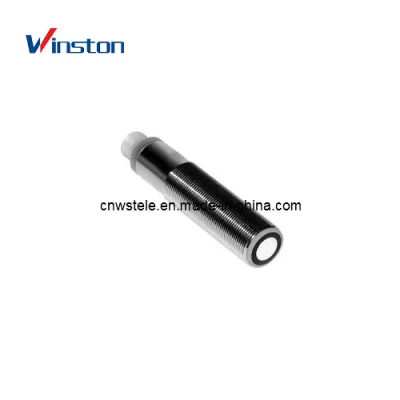

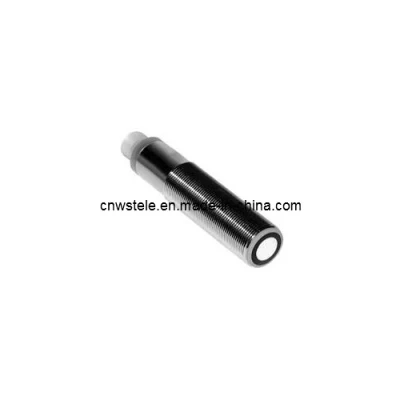

M18 Ultrasonic sensor proximity switch analog voltage output(UB500-18GM75-U-V1)
Brife introduction of ultrasonic sensor
Ultrasonic sensors present the ideal solution for non-contact position and distance measurement in all industrial areas where environmental conditions such as dust, smoke or steam may affect the sensors. Objects consisting of a variety of materials can be detected to within millimeters regardless of color or shape.
The ultrasonic sensor produces a data carrier utilizing very high frequencies that are outside the human's audible range. The time it takes for that ultrasonic wave to pass between the sensor and the object is the value for the distance or the position.
Ultrasonic sensors have proven their reliability and precision in many industries and applications, including:
lumber and furniture construction materials and equipment farming equipment level control applications
Technical data
Dimension
Brife introduction of ultrasonic sensor
Ultrasonic sensors present the ideal solution for non-contact position and distance measurement in all industrial areas where environmental conditions such as dust, smoke or steam may affect the sensors. Objects consisting of a variety of materials can be detected to within millimeters regardless of color or shape.
The ultrasonic sensor produces a data carrier utilizing very high frequencies that are outside the human's audible range. The time it takes for that ultrasonic wave to pass between the sensor and the object is the value for the distance or the position.
Ultrasonic sensors have proven their reliability and precision in many industries and applications, including:
lumber and furniture construction materials and equipment farming equipment level control applications
Technical data
| General Specifications |
| Sensing distance 30~500mm |
| Adjustment range 50~500mm |
| Unusable area 0~30mm |
| Standard target plate 100mm× 100mm |
| Transducer frequency About 380 kHz |
| Response delay About 50ms |
Indicators/Operating means |
| LED blue Power on |
| LED yellow indication of the switching |
| State Flashing: Program |
| Function object detected |
| LED red permanently red: Error Red, |
| Flashing: Program function,Object not detected |
Electrical specifications |
| Operating voltage UB 10~30VDC, ripple10%ss |
| No-load supply current ≤ 45mA |
Output |
| Output type 1 analogue output 010V |
| Resolution 0.11mm at max. Sensing range |
| Deviation of the characteristic |
| Curve ± 1% of full-scale value |
| Repeat accuracy ± 0.1% of full-scale value |
| Load impedance >1k Ohm |
| Temperature influence ± 1.5% of full-scale value |
| Ambient conditions |
| Ambient temperature -25~70degrees |
| Storage temperature -40-85degrees |
Mechanical specifications |
| Protection grade IP67 |
| Connection Connector M12x1, 4-PIN |
| Material |
| Housing brass, nickel-plated |
| Transducer epoxy resin/hollow glass |
| Sphere mixture; Polyurethane foam |
