Basic Info.
Model NO.
KCD1-1-102
Item
Rocker Switch
Current
6A/10A
Voltage
250VAC/125VAC
Material
PA66/PC
Function
on-on
Size
19.2*13 mm
Shape
Square
Size of Inner Terminal
4.8 mm
Button Color
Black, White, Red
Fress Sample
Yes
Transport Package
200PCS/Bag
Specification
CQC, CE, TUV, SGS
Trademark
Daier
Origin
Zhejiang
HS Code
8536500000
Production Capacity
50000PCS/Month
Product Description

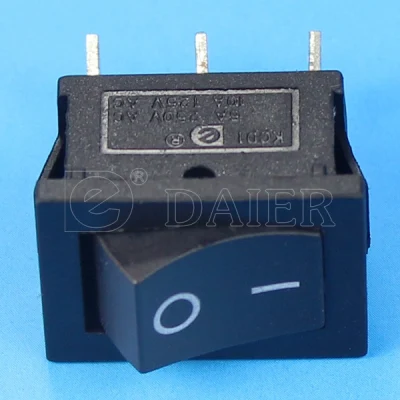

6A 3 Pin ON ON 2 Way Rocker Switch SPDT
Advantage
--------------------------------
| NO.1 | Good quality! |
| NO.2 | 10 years manature! |
| NO.3 | Many types of circuit breaker switch we can supply |
| NO.4 | High quality, competitive price, great service! |
| NO.5 | The best indicator light at the best price! |
The Main Technical Parameters
--------------------------------------------------------------------------------------------
| Item | 6A 3 Pin ON ON 2 Way Rocker Switch SPDT |
| Mterial | PA66 /PC |
| Rating | 10A 125VAC/6A 250VAC |
| Single package size | 18X16X8 CM/500PCS |
| Contact Resistance | ≤35MΩ |
| Insulation Resistance | ≥500VDC100mΩ |
| OperatingTemperature | -25C~+85C |
| Ambient Temperature | -10ºC~+85 ºC |
| Dielectric Strength | 1500VAC,1 Minute |
| Type | ROCKER SWITCH |
| Elactric life | >10000 Cycles |
| Electrical Life | >50000 Cycles |
| Terminals & Mid pins | Copper with silver plated |
| Ways And Pins | 2 Way and 3 Pins |
| Contacts | Copper with compound silver |
| Terminals & Mid pins | Copper with silver plated |
Technical Parameters
-----------------------------------------------------------------
| Experimental Current | Starting Condition | Experimental Time | Expect Result |
| 1In | Cold Start | 1h | Not Trip |
| 1.5In | Followed The Experiment | t<=1h | Trip |
| 2In | Cold Start | (t1)2s≤t≤60s(t2) | Trip |
| 6In | Cold Start | (t3)0.1s≤t≤2ss(t4) | Trip |
| 10In | Cold Start | (t5)0.02s≤t≤0.5s(t6) | Trip |
APPLICATION
----------------------------------------
6A 3 Pin ON ON 2 Way Rocker Switch SPDT is widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
