Basic Info.
Model NO.
2.4/2.92-KJ
Classification
Female Connector
Interface Type
2.40mm
Shape
Circular
VSWR
Straight
Medium Pressure
1000V
Brand
Ezcon
RoHS
Yes
Mating Cycles
500 Cycles
Transport Package
Box
Specification
CE, UL, ROHS
Trademark
EZCON
Origin
Changzhou China
Production Capacity
50000PCS/Year
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 5.00cm
Package Gross Weight
0.300kg
Product Description

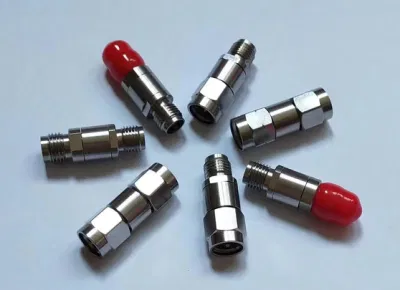

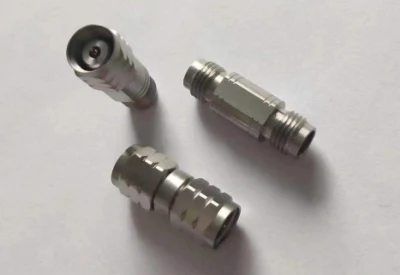

SMK/2.4Precision coaxial connector for microwave applications. The maximum frequency is 40GHz.
`Design in accordance with: IEEE287™ -2007
Standard materials and finish
` Center conductor: Beryllium copper, gold plated
` Insulator: PEI
` Outer conductor: Stainless steel, Passivated
Electrical Characteristics
` Characteristic Impedance: 50Ω
` Frequency range: DC-40GHz
` VSWR: 1.15: 1 max
`Insulation resistance: 5000MΩ Min
`Test voltage: 1000V
Mechanical
`Coupling torque: 1.69N*m max
` Mating cycles: 1000cycles min
Environmental
`Temperature range: -55° C~+155° C
Company Show
EZCON is a product and solution provider, the company provides high quality, high performance, and low-cost cable assembly/connector products. EZCON engages in R&D, for telecom and electronics products with a focus on RF cable assemblies/connectors, high speed interconnect cable assemblies/connectors, and high-end test/calibration products. The company has the capacity of product design, engineering service, low-cost production/sourcing, assembly, and testing. EZCON combines the advantages of low-cost production in China with a high level of engineering expertise, service, and quality.
Our Customers
Company Products and Technologies
Customers Testimonials
Main Company Equipments And Production line
Products application sites
Company Certification
FAQ
1.Q: What's your MOQ?
A: 50 pcs
2.Q: What's your delivery time?
A:7-14 days after receiving PO.
3.Q: Does your company do a customized design?
A: Yes, we do OEM and ODM
4.Q: What is your after-sale service program?
A: Please see our service manual for details.
5. Q: Can you send samples to us for the test?
A: Yes, samples can be sent at a cost.
WHY CHOOSE EZCON
1)Sales directly to the customer.
2) First-class performance, highest quality, and life cycle.
3) Fast delivery: 1-2 working days.
4) Customerized Design.
5) Very competitive price.
7) Fast, enthusiastic, thoughtful, caring, and excellent service.
8) Quick response(replying within 30 minutes of receiving the request).
Our service
1. Email reply within 24 hours.
2. One-stop solution for electronic components, service, and manufacturing.
3. Each piece must pass the precision test.
4.Quality after-sales service.
