18GHz Sp6t N Connector RF Coax Coaxial Electromechanical Switch

Get high-quality 18GHz Sp6t N Connector RF Coax Coaxial Electromechanical Switch from our factory. Durable and reliable for seamless RF signal switching.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
SP6T_N-SP
Pin Options
D-SUB 15pins
Vswr (Max.)
1.25/1.45/1.7
Insertion Loss (Max)dB
0.3/0.4/0.7
Isolation (Min)dB
70/60/55
Impedance
50 Ohm
Switching Time(Max)
< 20 Ms
Connector
N-Female
Temperature Range
-25 to +65
Operation Life (Cycles)
1, 000, 000(Standard)
Transport Package
Polyfoam Packaging & White Box
Trademark
JML
Origin
Shenzhen, Guangdong, China
HS Code
8536500000
Production Capacity
2000 Piece Per Mother

Product Description

Technical Parameters.
In order to give you the best price, please kindly specify your requirements as clearly as possible.
OEM and ODM is welcome, we have professional and experienced engineer team for you.

SP6T_N Series

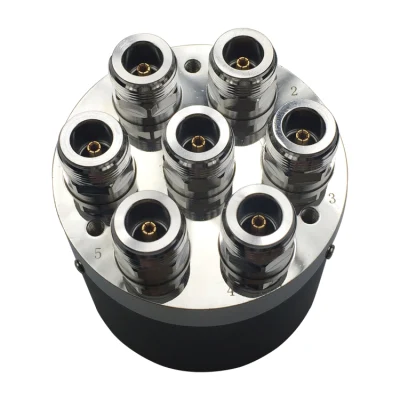

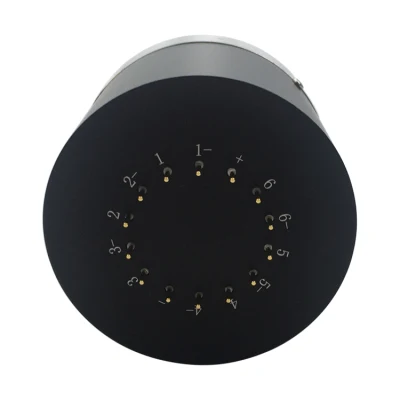

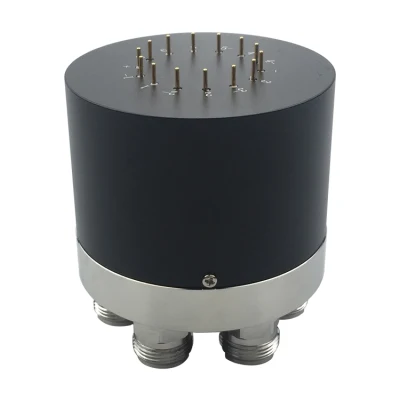

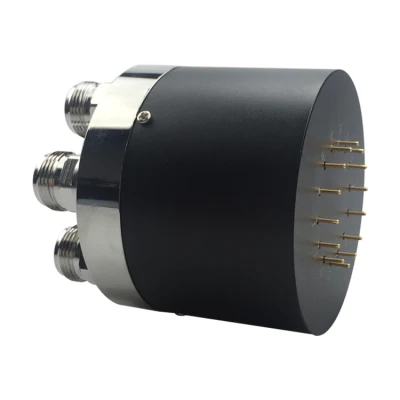

N type single pole six-throw radio frequency electromechanical switch

The SP6T RF coaxial electromechanical switch with interface type N has excellent reliability and high performance. It can switch one signal from the common port to one of the other 6 output ports, and the operating frequency is from DC to 12.4GHz. Widely used in RF measurement, testing, broadband wireless communications, and automated test equipment.

Model selection

Connectors  Frequency  Type  Actuator Voltage
N: type N Female  3: up to 3GHz  1: Normally Open  2: 12V
  6: up to 6GHz  2: Latching  3: 24V
  12:up to 12GHz
Number of  Positions  TTL Options  Options
4: 4 positions  0: without TTL  0: Solder pins
5: 5 positions  1: with TTL(high level)  1: 16 pin Connector
6: 6 positions

Electrical properties
Ports  Frequency VSWR Insertion loss Isolation Impedance
(GHz)  (max)  (max)dB  (min)dB  (Ω)
4~6  DC~3  1.20 0.20 80 50
3~6  1.35 0.35 70
6~12.4  1.50 0.50 60

General specification
General specification
TLL input High level 2.5 to 5.5 Volts
Low level 0 to 0.8    Volts
Switching time(maximum) ms  20
Working temperature -400C~+850
Storage temperature  -550C~+850
Life span 2.5 million times

Part Number Selection:
18GHz Sp6t N Connector RF Coax Coaxial Electromechanical Switch


Frequency Type Actuator Voltage Number of Position TTL Options Options
3:up to 3 GHz 1: Normally Open 2: 12V 4: 4 postions 0: without TTL 3:D-sub 15pins
6:up to 6 GHz 2: Latching 3: 24V 5: 5 positons 1: with TTL(high level)
18:up to 6 GHz   4: 28V 6: 6 positons 2: with TTL and indicators

Electrical Specification:

Numbers of Frequency Range VSWR Insertion Loss Isolation Impedance
Positions (GHz) (max.) (max)dB (min)dB (Ω)
4-6 DC-4 1.25 0.3 70 50
4-8 1.45 0.4 60
8-12.4 1.7 0.7 55

Parameter Min. Typ. Max Units

TTL input
High Level 2.2 to 5.5V(TTL Option)
Vdc
  Low Level 0 to 0.8V(TTL Option)
Switching time(max) 20 ms
Connector N-Female
Temperature Range -25 to +65 0C
Operation Life (cycles) 1,000,000(Standard)
Vibration (operating) 10G RMS, 20-2000Hz
Mechanical Shock (non-operating) 50G, 1/2Sine, 11msec
Weight(approx.) /

Connector Pinout:
Normally Open
15 Pins D-Sub Pinout
Normally Open TTL
15 Pins D-Sub Pinout
Latching
15 Pins D-Sub Pinout
Latching TTL
15 Pins D-Sub Pinout
Pin No. Pinout Pin No. Pinout Pin No. Pinout Pin No. Pinout
n=1-6 Vn(Jn-COM) n=1-6 An(Jn-COM) n=1-6 Vn(Jn-COM) n=1-6 An(Jn-COM)
7 GND 7 GND 7 GND 7 GND
8 1(IND:J1-C) 8 1(IND:J1-C) 8 1(IND:J1-C) 8 1(IND:J1-C)
9 2(IND:J2-C) 9 2(IND:J2-C) 9 2(IND:J2-C) 9 2(IND:J2-C)
10 3(IND:J3-C) 10 3(IND:J3-C) 10 3(IND:J3-C) 10 3(IND:J3-C)
11 4(IND:J4-C) 11 4(IND:J4-C) 11 4(IND:J4-C) 11 4(IND:J4-C)
12 5(IND:J5-C) 12 5(IND:J5-C) 12 5(IND:J5-C) 12 5(IND:J5-C)
13 6(IND:J6-C) 13 6(IND:J6-C) 13 6(IND:J6-C) 13 6(IND:J6-C)
14 GND_I 14 GND_I 14 GND_I 14 GND_I
15 / 15 VCC 15 / 15 VCC


Package and Shipment Details:
1) Neutral Master Carton Package;
2) Customized Package;
18GHz Sp6t N Connector RF Coax Coaxial Electromechanical Switch


Product Equipment Line:
18GHz Sp6t N Connector RF Coax Coaxial Electromechanical Switch

Quality Controls:

With more than 10 years experience, we produce A-Grade voltage stabilizer/regulator and can offer OEM & ODM service.
All our products have CE certificate and some have obtained patent.
18GHz Sp6t N Connector RF Coax Coaxial Electromechanical Switch18GHz Sp6t N Connector RF Coax Coaxial Electromechanical Switch
About us

Shenzhen Xin Poming Power Equipment Manufacturing Co., Ltd is established in Guangdong Province of China in 2007, which manufactures and sells voltage regulators, transformers, UPSs, frequency converter, DC power sources and other power products and can provide systemic power solutions for customers with it's complete product list For clients around the world .

18GHz Sp6t N Connector RF Coax Coaxial Electromechanical Switch


FAQ(Frequent Asked Qestions)

Q: What RF switch configurations are available?

A: Below are our popular configurations for your reference, besides, we accept customization.

Electro-mechanical switches: 1P2T (single-pole, double-throw); 1P3T; 1P4T; 1P6T; 1P8T; 1P12T

Solid-state switches: 1P1T; 1P2T; 1P3T; 1P4T; 1P6T; 1P8T; 1P10T; 1P12T; 1P16T

Q: What control options are available?

A: Depending on model, EM RF switches offer TTL logic-level control, or +12, +15 or +28 V DC control. Solid-state switches use TTL logic levels, and one model has a USB interface.

Q: Are the RF switch attenuators bi-directional?

A: All of XINPOMING's RF switches are bi-directional unless noted differently on the specification sheet.

Q: I need a custom RF switch designed. How much are your typical NREs (non-recurring engineering charges)?

A: XINPOMING does not charge NREs. Please send your custom requirement to us for details communication.

Q: Are your 18GHz electro-mechanical switches available with indicators or as latching?

A: Typical options: latching, self-terminating, indicators, TTL, RoHS and non-RoHS.
