Basic Info.
Model NO.
SMA-KK
Gender
Female
Fastening Type
Threaded Connection
Mounting Type
Surface Mount
Insulating Materials
PTFE
Contact Finish
Gold
Materials
Beryllium Copper
Standard
SMA Connector
Mating Cycles
>500 Cycles
Plating of Pin
Au
Transport Package
Box
Trademark
EZCON
Origin
Changzhou China
HS Code
8536901900
Production Capacity
50000PCS/Year
Packaging & Delivery
Package Size
15.00cm * 12.00cm * 8.00cm
Package Gross Weight
0.500kg
Product Description

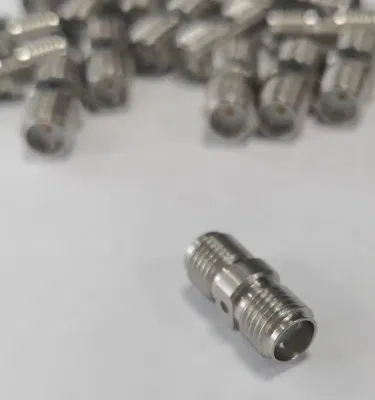

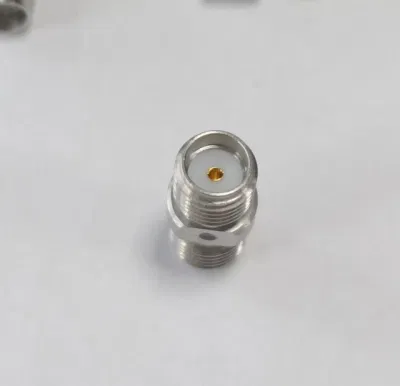

Adaptor SMA(M to M) Precision coaxial connector for microwave applications. The maximum frequency is DC to 3GHz.
Design in accordance with: IEEE Std 287™ -2007
Standard materials and finish
Company Show
EZCON is a product and solution provider, the company provides high quality, high performance, and low-cost cable assembly/connector products. EZCON engages in R&D, for telecom and electronics products with a focus on RF cable assemblies/connectors, high speed interconnect cable assemblies/connectors, and high-end test/calibration products. The company has the capacity of product design, engineering service, low-cost production/sourcing, assembly, and testing. EZCON combines the advantages of low-cost production in China with a high level of engineering expertise, service, and quality.
Our Customers
Company Products and Technologies
Customers Testimonials
Main Company Equipments And Production line
Products application sites
Company Certification
FAQ
1.Q: What's your MOQ?
A: 50 pcs
2.Q: What's your delivery time?
A:7-14 days after receiving PO.
3.Q: Does your company do a customized design?
A: Yes, we do OEM and ODM
4.Q: What is your after-sale service program?
A: Please see our service manual for details.
5. Q: Can you send samples to us for the test?
A: Yes, samples can be sent at a cost.
WHY CHOOSE EZCON
1)Sales directly to the customer.
2) First-class performance, highest quality, and life cycle.
3) Fast delivery: 1-2 working days.
4) Customerized Design.
5) Very competitive price.
7) Fast, enthusiastic, thoughtful, caring, and excellent service.
8) Quick response(replying within 30 minutes of receiving the request).
Our service
1. Email reply within 24 hours.
2. One-stop solution for electronic components, service, and manufacturing.
3. Each piece must pass the precision test.
4.Quality after-sales service.
Design in accordance with: IEEE Std 287™ -2007
Standard materials and finish
| Product Description | |||
| parameters | |||
| Series1 | SMA | ||
| Interface1 | female | ||
| Series2 | SMA | ||
| Interface2 | female | ||
| Electrical data | |||
| parameters | |||
| Impedance( Ω) | 50 | ||
| Frequency(GHz) | DC to 26.5GHz | ||
| Return loss | ≥26dB, DC to 26.5GHz | ||
| Insertion loss(dB) | ≤ 0.03 x √f(GHz) dB | ||
| Mechanical data | |||
| parameters | |||
| Mating cycles | ≥ 500 | ||
| Environmental data | |||
| parameters | |||
| Temperature range(°C) | -55~ +155 | ||
| RoHS | compliant | ||
| Packing | |||
| parameters | |||
| Weight (g/pce) | 4.45 | ||
