Basic Info.
Model NO.
TPW-ATT5-XX-18-NMF
Certification
CE, ISO, RoHS
Condition
New
Attenuation
3~40dB or Customized
Power Rating
5W or Higher
Frequency
DC-18GHz
Vswr
1.50max
Connector
N Female or Customized
Impedance
50ohm
Transport Package
Standard Export Packing Cartons
Trademark
Topwave
Origin
China
HS Code
8517709000
Production Capacity
500PCS/ Day
Packaging & Delivery
Package Size
6.00cm * 2.00cm * 2.00cm
Package Gross Weight
0.100kg
Product Description

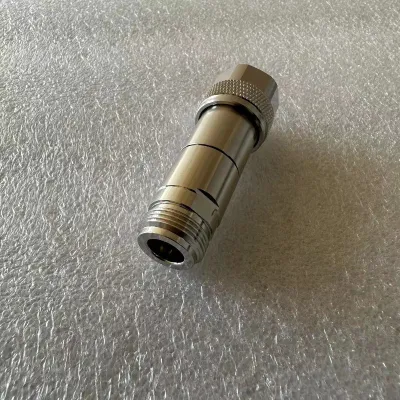

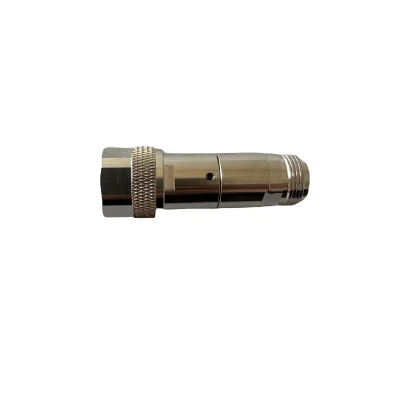

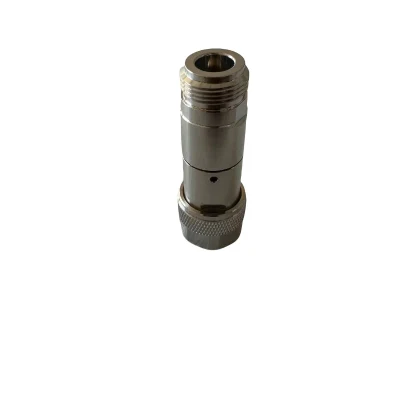

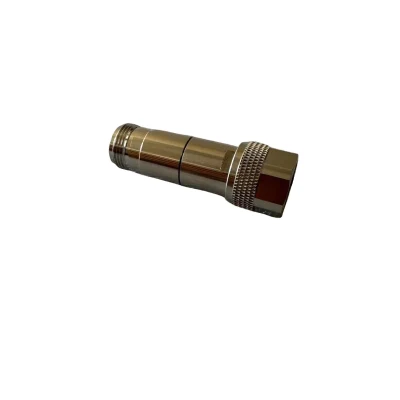

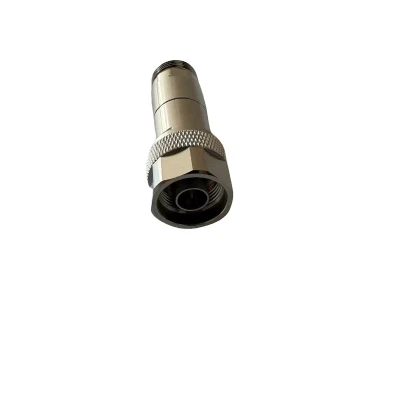

5W RF Attenuator(DC-18GHz, N Male to N Female)
| Model No. | TPW-ATT5-XX-18-NMF (XX means attenuation in dB) |
| Attenuation(dB) | 3~30 |
| Accuracy(dB) | ±0.6 ~ ±1.5 |
| Freq(MHz) | DC-18GHz |
| VSWR | ≤1.50 |
| Power Rating(W) | 5W (average) |
| Impedance | 50 ohm |
| Connector | N Male to N Female |
| Color | Black |
| Relative Humidity | 5-95% |
| Operating Tem(ºC) | -35°C to +65°C |
| Dimensions(mm) | See Mechanical Drawing |
| Weight(kg) | 0.08 |
Note: Complete Specs see below
· Wide Frequency Band Covering DC-18GHz
· Good Performance in Attenuation Accuracy
· Low VSWR
· Indoor Using IP60
· Available with Type N, 7/16DIN or 4.3/10 Connectors
| Model No. | TPW-ATT5-XX-18-NMF(XX means attenuation in dB) | |||||||||
| Attenuation(dB) | 3 | 5 | 6 | 7 | 8 | 10 | 13 | 15 | 20 | 30 |
| Accuracy(dB) | ±0.6 | ±0.6 | ±0.8 | ±0.8 | ±0.8 | ±1.0 | ±1.2 | ±1.2 | ±1.5 | ±1.5 |
| Freq(MHz) | DC-18GHz | |||||||||
| VSWR | ≤1.50 | |||||||||
| Power Rating(W) | 5W (average) | |||||||||
| Impedance | 50 ohm | |||||||||
| Connector | N Male to N Female | |||||||||
| Color | Black | |||||||||
| Relative Humidity | 5-95% | |||||||||
| Operating Tem(ºC) | -35°C to +65°C | |||||||||
| Dimensions(mm) | See Mechanical Drawing | |||||||||
| Weight(kg) | 0.08 | |||||||||
VHF, UHF, PS700/800MHz Series of Components
Topwave Telecom's VHF, UHF, PS700/800MHz frequency band components have been widely deployed in a full range of mission critical communication networks to provide emergency and secure communication service in public safety fields including Fire, Medical and other government agencies.
Topwave Public Safety series covers various of components from Power Splitter, Directional Coupler, Hybrid Coupler, Power Tapper, FirstNet Filter to 700/800MHz Combiner/Multiplexer, which could exactly meet your need for Public Safety DAS, Critical Communication and two way radio system! We have much more components for you to explore, contact us for details!!!
Topwave Telecom's VHF, UHF, PS700/800MHz frequency band components have been widely deployed in a full range of mission critical communication networks to provide emergency and secure communication service in public safety fields including Fire, Medical and other government agencies.
Topwave Public Safety series covers various of components from Power Splitter, Directional Coupler, Hybrid Coupler, Power Tapper, FirstNet Filter to 700/800MHz Combiner/Multiplexer, which could exactly meet your need for Public Safety DAS, Critical Communication and two way radio system! We have much more components for you to explore, contact us for details!!!
Small Cells Antennas for 5G Base Station
Topwave is a leading Telecom & RF products manufacturer providing networking and communication services to customer all over the world. We provide and manufacture world-class advance innovative antennas along with other related products for end-to-end antenna solutions with exceptional performance.
We are one of the top providers of world-class 5G communication products in Hefei, China.
Topwave has proven to be a game-changer by bringing a drastic technology change in the telecommunications industry. Our capabilities lie in designing, manufacturing, trading and services to enable the full value of connectivity.
Topwave is a leading Telecom & RF products manufacturer providing networking and communication services to customer all over the world. We provide and manufacture world-class advance innovative antennas along with other related products for end-to-end antenna solutions with exceptional performance.
We are one of the top providers of world-class 5G communication products in Hefei, China.
Topwave has proven to be a game-changer by bringing a drastic technology change in the telecommunications industry. Our capabilities lie in designing, manufacturing, trading and services to enable the full value of connectivity.
Components for in-building DAS Communication System
Hefei Topwave Telecom Co., Ltd also provides antennas and other RF components for base stations. Our solutions include a comprehensive site survey, design, installation, integration and maintenance, as well as walk testing and proper labeling to identify faulty antennas during maintenance.
We can meet all your needs to support these advanced in-building communication systems. Partner with us for DAS installation for Indoor and Outdoor Solutions where confined areas require radio coverage for single or multiple services. Topwave Telecom, your trusted strategic business partner, your RF expert in telecommunication.
Hefei Topwave Telecom Co., Ltd also provides antennas and other RF components for base stations. Our solutions include a comprehensive site survey, design, installation, integration and maintenance, as well as walk testing and proper labeling to identify faulty antennas during maintenance.
We can meet all your needs to support these advanced in-building communication systems. Partner with us for DAS installation for Indoor and Outdoor Solutions where confined areas require radio coverage for single or multiple services. Topwave Telecom, your trusted strategic business partner, your RF expert in telecommunication.
Q: Can I get smaples for validation test?
A: Let's talk, some samples are free but shipping charge should be on your account.
Q: What is your MOQ?
A: We don't have MOQ limit.
Q: What is your payment terms?
A: We accept Western Union, T/T, Paypal and so on.
Q: What is your delievry time?
A: Normally around 2 weeks, TBD for massive quantity or customized products.
